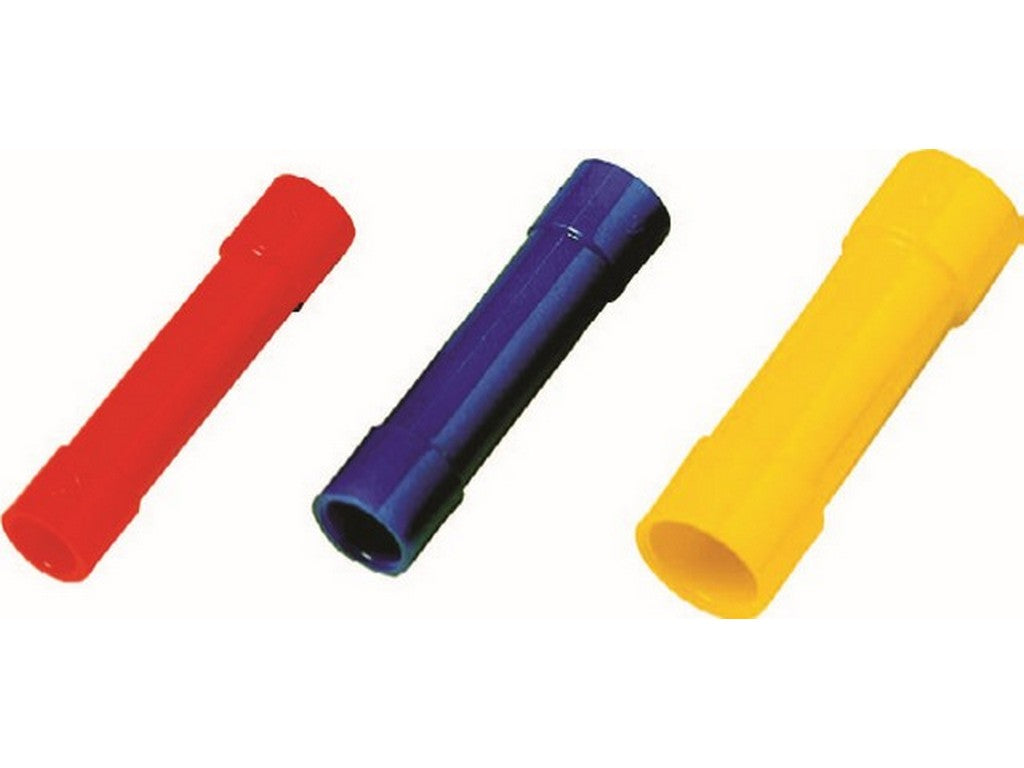

ICIQ1V — Insulated Butt Connector
This product is an insulated butt connector with a flared insulating sleeve. The ICIQ1V is specified with a nominal cross-section of 0.5–1 mm² and is intended for stranded and fine-stranded conductors. The description below is based solely on the data provided by the manufacturer.
Product Overview
- Type: ICIQ1V (insulated butt connector with flared insulating sleeve)
- Manufacturer: WEITKOWITZ
- Nominal cross-section: 0.5–1 mm²
- Insulation colour: red
- Packaging unit: 100 pcs. per package
Typical applications
ICIQ1V is specified for use on stranded and fine-stranded conductors. The flared/insulated sleeve is a design detail in the product description and relates directly to the connection method for the specified conductor types.
Physical dimensions and weight
- d1 = 1 mm
- d4 = 4 mm
- l1 = 25 mm
- L2 = 15 mm
- Net weight per 100 pcs. = 0.09 kg
Documentation
The information in this text comes from the manufacturer's product information. Source: Intercable product page for ICIQ1V.
Specifications
- Product name: ICIQ1V
- Manufacturer: WEITKOWITZ
- Type designation: Insulated butt connector with flared insulating sleeve
- Nominal cross-section: 0.5–1 mm²
- Insulation colour: red
- Packaging: 100 pcs. per package
- Dimensions: d1=1 mm, d4=4 mm, l1=25 mm, L2=15 mm
- Net weight: 0.09 kg per 100 pcs.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
