Crimping Tool
Product Overview

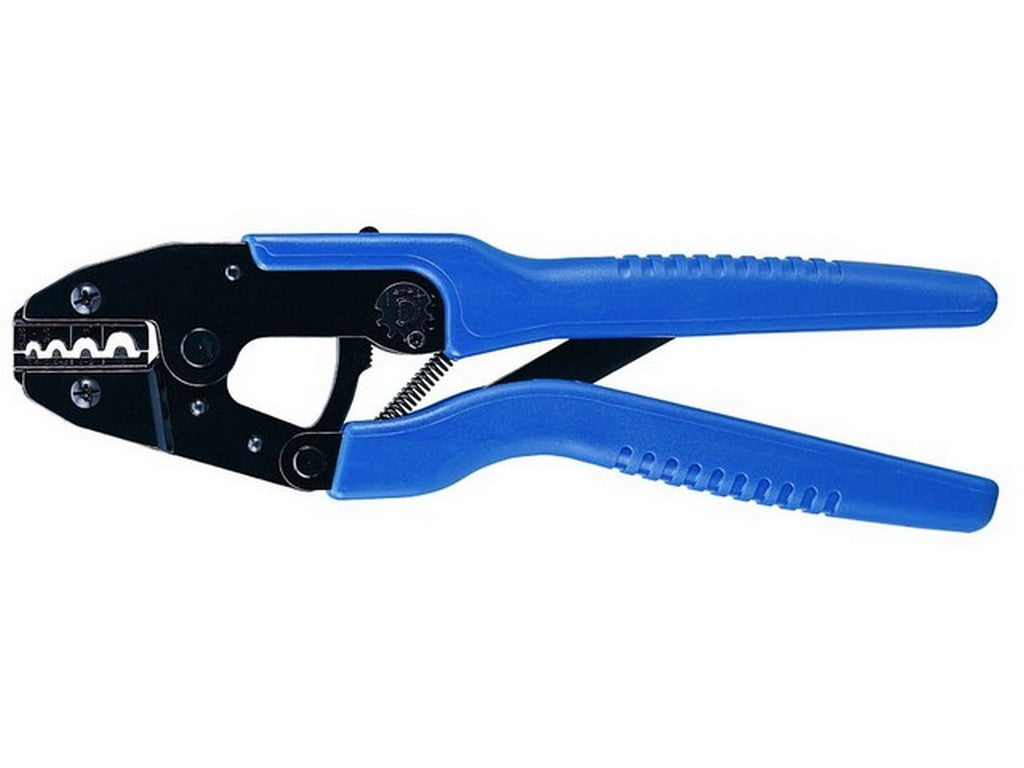

The XLHD-0510DN is a crimping tool from FIRST-FORE designed for crimping uninsulated terminals in accordance with DIN 46234. The tool is intended for conductor cross-sections from 0.5 to 10 mm² and indicates compatible AWG ranges for precise application.
Function and Application
The XLHD-0510DN performs mechanical crimping of uninsulated terminals as specified in DIN 46234. The product is designed to accommodate the conductor cross-sections and AWG ranges indicated in the input, as directly stated in the manufacturer's information.
- Intended conductor cross-sections: 0.5–10 mm².
- Compatible AWG ranges: AWG 22–18, 16–14, 12–10 and 8.
- Specific function: crimping of uninsulated terminals according to DIN 46234.
Design and Handling
The overall length of the tool is 258 mm and the stated weight is 0.65 kg. The XLHD-0510DN is specified with both the manufacturer's model number and the technical size ranges in the manufacturer's product description.
Specifications
- Product: XLHD-0510DN.
- Manufacturer: FIRST-FORE.
- Application: Crimping of uninsulated terminals according to DIN 46234.
- Conductor cross-section: 0.5–10 mm².
- Compatible AWG: AWG 22–18, 16–14, 12–10 and 8.
- Overall length: 258 mm.
- Weight: 0.65 kg.
