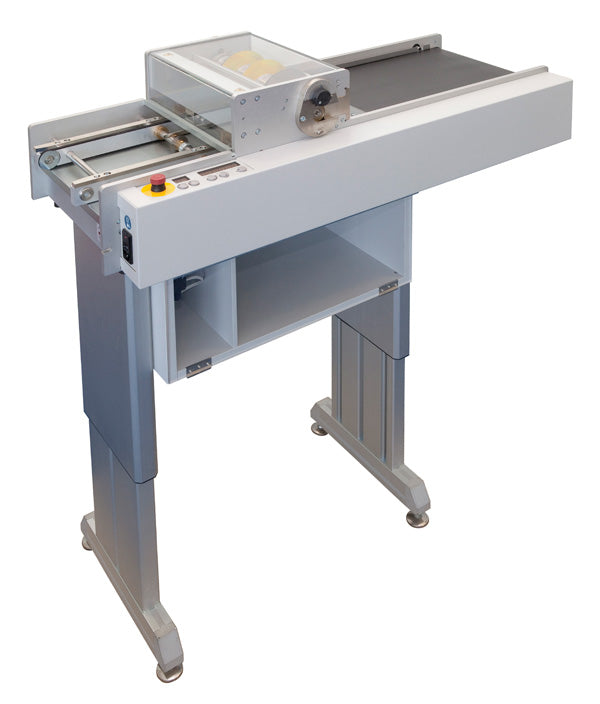

  • Print skære maskine Maestro 5L med understel og transportbånd
1 3

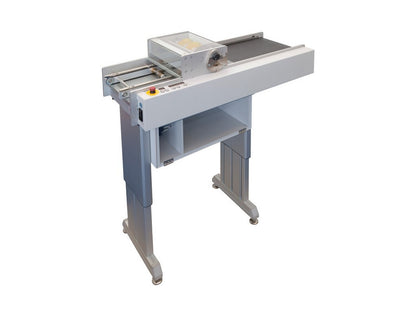

Print cutting machine Maestro 5L

Print cutting machine Maestro 5L

CAB

8934520

In stock

View full details

You are not logged in and therefore do not see your prices.

Have an account and login
Don't have an account?Have an account

Automatic separator for V-cut PCBs

The MAESTRO 5L from CAB is an automatic separator designed to separate pre-scored (V-cut) circuit boards. The unit separates up to 15 adjacent boards simultaneously and has a maximum passage width of 310 mm. The separation is motor-driven using rotating blades on both the component and solder sides, with an adjustable speed in the range of 100–220 mm/s.

Function and operation

The description of the MAESTRO 5L shows a mechanical separation principle, where two sets of rotating blades work on both the component and solder sides to perform a controlled separation along the V-cut groove. The speed can be adjusted within the specified range, and the machine is suitable for series where several adjacent PCBs need to be separated simultaneously.
  • Motor-driven separation with rotating blades on both sides
  • Adjustable separation speed: 100–220 mm/s
  • Capacity: up to 15 adjacent PCBs simultaneously
  • Max. passage width: 310 mm

Integration and installation

The MAESTRO 5L is equipped with a SMEMA interface, enabling integration into production lines, and it comes with an adjustable base for positioning. There is also a connector for connecting extraction or filter installation, which can be used for extracting particles or shielding dust during the separation process.

Documentation

Technical documentation for the MAESTRO 5L is available from the manufacturer. See datasheet from the manufacturer

Specifications

  • Product name: MAESTRO 5L
  • Manufacturer: CAB
  • Product number: 8934520
  • Function: Automatic separator for pre-scored (V-cut) PCBs
  • Max. passage width: 310 mm
  • Capacity: Up to 15 adjacent PCBs simultaneously
  • Separation principle: Motor-driven with rotating blades on component and solder sides
  • Speed: Adjustable 100–220 mm/s
  • Integration: SMEMA interface
  • Base: Adjustable base
  • Extraction: Connector for extraction/filter installation
  • Weight: 63 kg
  • Documentation: Technical documentation on cab.de (see datasheet)
