PCSA-4N — ESD-safe PCB Holder

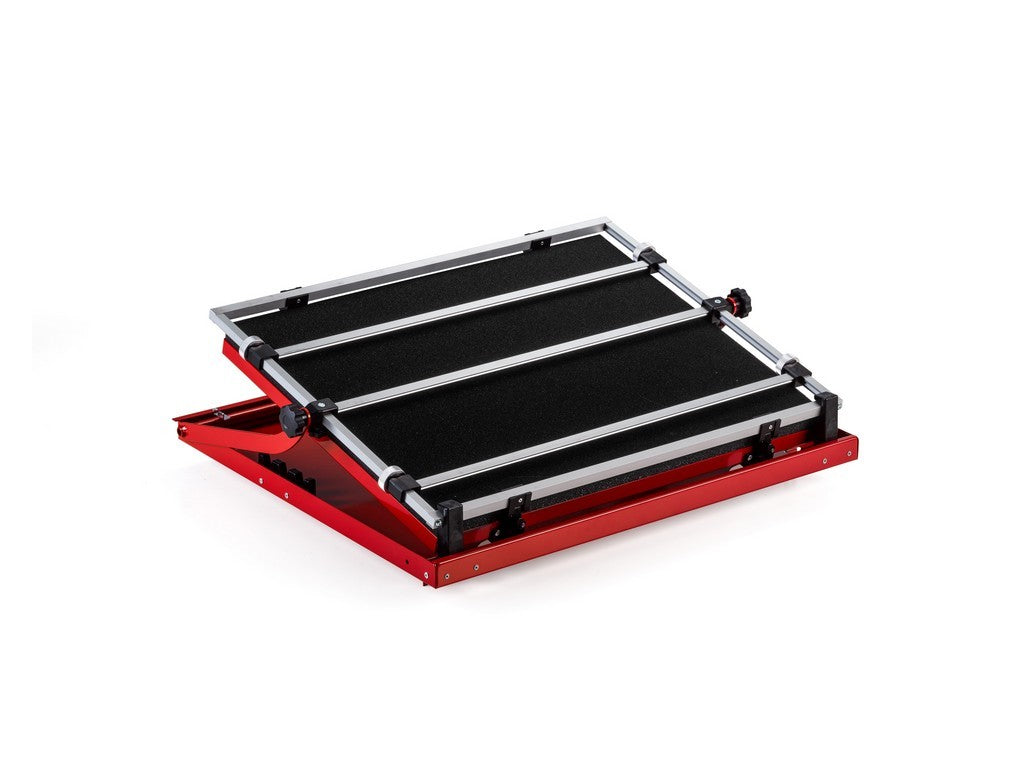

The PCSA-4N is an ESD-safe PCB holder from IDEAL-TEK in the PCSA series. The product is designed to hold electronic circuit boards in place during component soldering; the paint and ESD-functional parts reduce the risk of electrostatic discharge on the mounted components. The PCSA-4N replaces the previous model PCSA-4.
Design and function
The holder has a foam work surface measuring 510 mm x 350 mm and can be disassembled into individual parts that can be assembled in various combinations (PCSA series). The product's ESD properties are stated as compliant with IEC 61340-5-1:2016 and IEC 61340-2-3:2016 according to the manufacturer's information.
Documentation
See datasheet from the manufacturer
Typical applications
- Holds electronic circuits during component soldering (suitable for holding PCBs in place during soldering), as specified by the manufacturer.
Specifications
- Product name: PCSA-4N
- Manufacturer: IDEAL-TEK
- Product code/type: Circuit Board Holders
- Foam work surface: 510 mm x 350 mm
- Overall length (OAL): 600.0 mm
- Width: 500.0 mm
- Height: 100.0 mm
- Net weight: 6900 g
- ESD requirements: Compliant with IEC 61340-5-1:2016 and IEC 61340-2-3:2016 (stated by the manufacturer)
- Made in: Italy
The content has been generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
