Product Overview

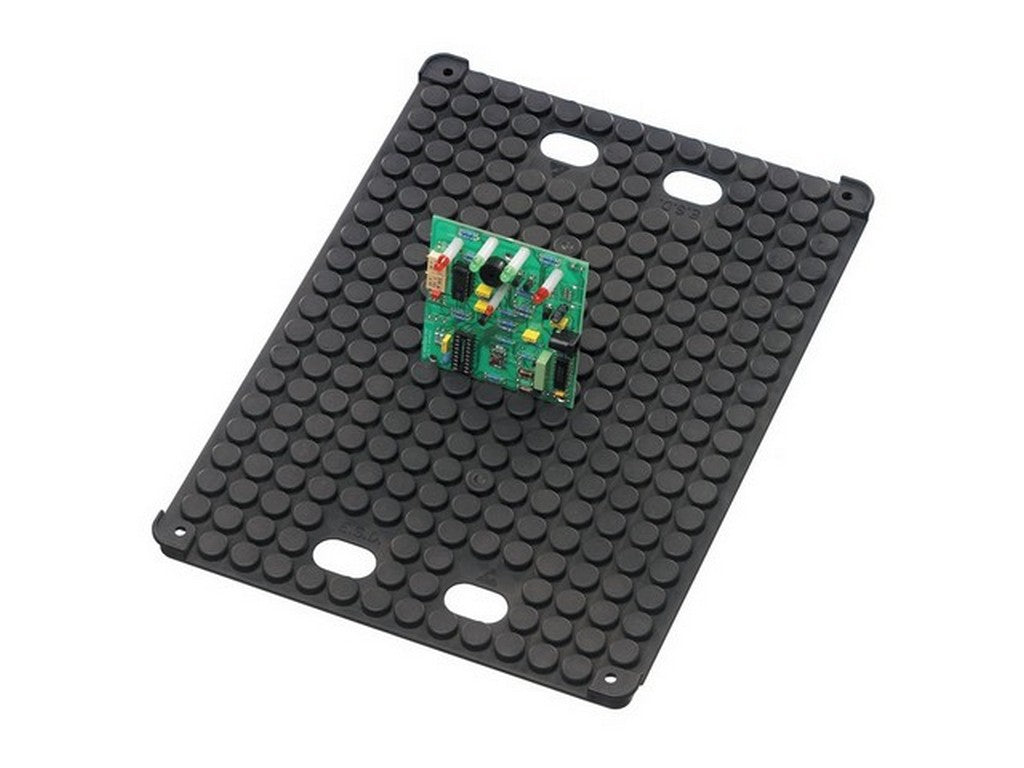

This flat conductive PCB holder from DESCO (DESCO 237185) is designed as a plate for positioning and storing circuit boards. The product is specified in the manufacturer's description as a flat, conductive holder made of conductive polypropylene, with dimensions indicated and electrical surface resistance measured in accordance with IEC 61340-2-3.Material and Electrical Properties
- Material: Conductive polypropylene.
- Surface Resistance (Rs): < 1 x 10^5 ohms according to IEC 61340-2-3.
- Melting Temperature: Stated as 80 °C to 90 °C.
Physical Design
- Dimensions: 355 mm x 255 mm x 14 mm (stated size).
- Size Tolerance: ± 0.8 mm.
- Slot Width: 1.9 mm.
- Number of Slots: 13 x 19.
- Stated Compatibility: Indicated for use inside most 400 mm x 300 mm PCB containers.
Typical Applications
The product is specified for use inside 400 mm x 300 mm PCB containers and is used for positioning/holding circuit boards within the mentioned container size.
Identification
- Manufacturer: DESCO.
- Manufacturer's Part Number: 237185.
- Previous Part Number (Vermason): K1817.
Specifications
- Manufacturer: DESCO.
- Part Number: 237185.
- Type: Flat conductive PCB holder.
- Material: Conductive polypropylene.
- Dimensions: 355 mm x 255 mm x 14 mm.
- Size Tolerance: ± 0.8 mm.
- Slot Width: 1.9 mm.
- Slots: 13 x 19.
- Surface Resistance (Rs): < 1 x 10^5 ohms (IEC 61340-2-3).
- Melting Temperature: 80 °C – 90 °C.
- Recommended Use: Inside most 400 mm x 300 mm PCB containers.
- Source: Information from DESCO product description for item no. 237185.
