STAUBLI 15.5272
The STAUBLI 15.5272 is a protective cover for the 16BV circular connector series. It is used on panel-mounted chassis components and is designed to cover the unused part of the connection. In this way, it helps to protect against mechanical impact and dirt when the connector is open.
The cover is designed as a spring-loaded, hinged flap. In practice, this means it is ready in place and easy to close over the unused connection when no counterpart is connected. It is a simple detail, but in a production or system environment, it can make a clear difference to both durability and operational reliability.

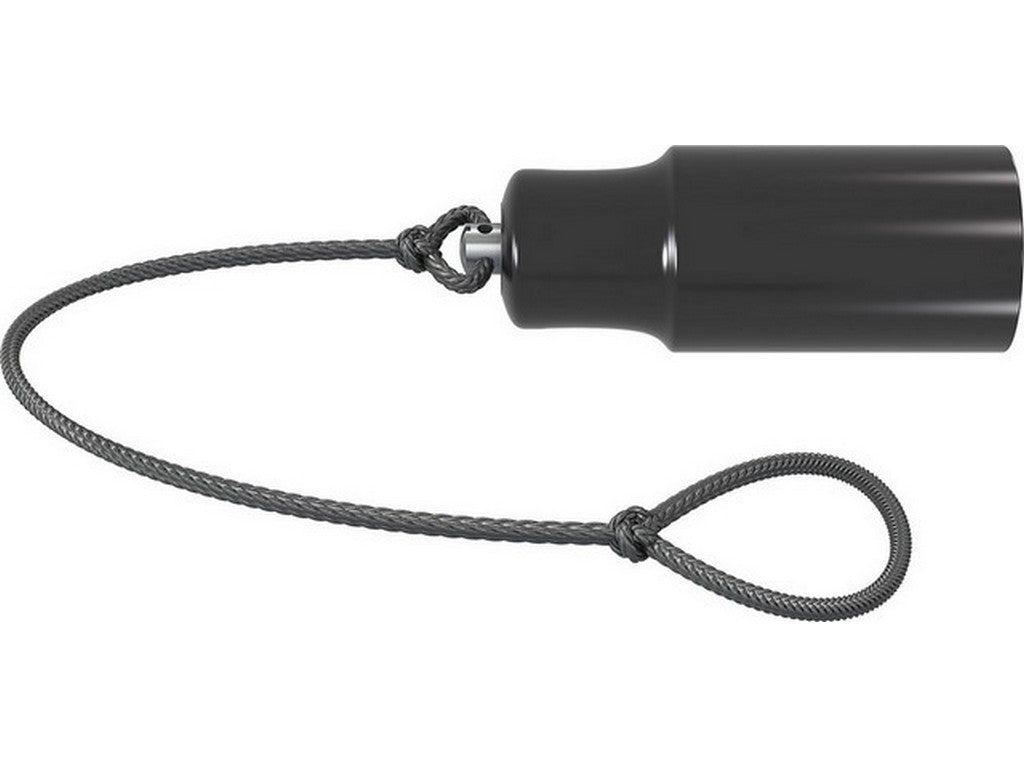

During assembly, the protective cover is placed over the connector, the loop is pulled over the connector, and the cord is fastened at position P. The included heat-shrink tubing is then used to secure the knot. This type of assembly is typically relevant when a fixed and practical cover is desired that follows the connector connection.
See datasheet from the manufacturer
Typical applications
- Panel-mounted chassis components in the 16BV series
- Covering of unconnected plug positions
- Protection against dirt and mechanical impact
Specifications
- Manufacturer: STAUBLI
- Part number: 15.5272
- Product: DST16-NS
- For 16BV circular connector series
- For panel receptacle sockets
- Spring-loaded hinged cover
- Protection of unmated junction boxes
- Protection against mechanical impact and dirt
- As shown in the Stäubli catalog "Round connector 16BV" (PL-16BV-11013990-en.pdf), page 18
