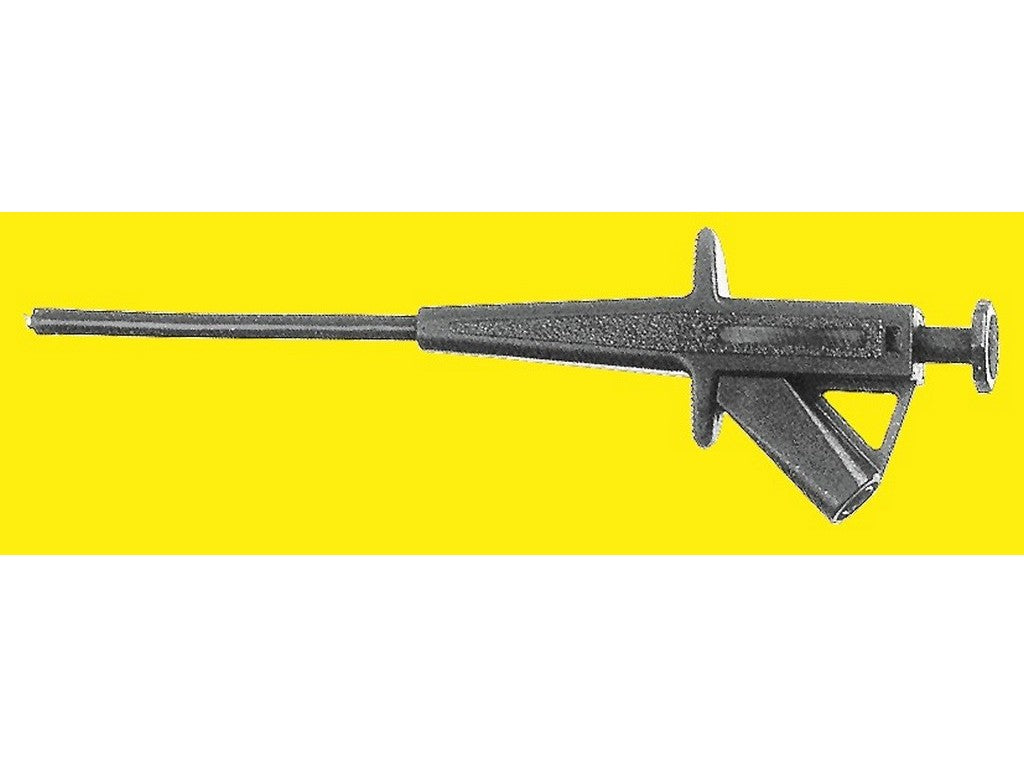

Test clip: SKPS-4
The SKPS-4 from STAUBLI is a test clip with a flexible shaft and a stainless steel spring wire grabber designed to establish contact with pins and wires in hard-to-reach areas. The design is functional and described with a focus on the requirements of electrical measuring tools, without marketing-oriented language.
Construction and function
- Flexible shaft with silicone insulation for heat resistance and maintained mechanical properties at low temperatures.
- Stainless steel spring wire grabber for contact with pins and conductors in restricted access positions.
- The handle contains a fixed Ø 4 mm socket that accepts spring-loaded Ø 4 mm plugs with a rigid insulating sleeve.
Documentation
Official product information and technical data are provided in the manufacturer's datasheet.
See datasheet from the manufacturer
Typical applications
- Used to make electrical contact with pins in hard-to-reach positions.
- Used for contact with wires in restricted access areas.
- Particularly suitable for measuring voltages, as stated in the manufacturer's description.
Specifications
- Product: SKPS-4
- Manufacturer: STAUBLI
- Manufacturer part number: 24.0224-24
- Diameter plug system: 4 mm
- Fixed Ø 4 mm socket in handle (accepts spring-loaded Ø 4 mm plugs with insulating sleeve)
- Rated values: 1000 V, CAT II, 4 A
- Opening width: 2.5 mm
- Base contact material: stainless steel (Edelstahl)
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE
- Datasheet date: 02.2022
