Product Overview

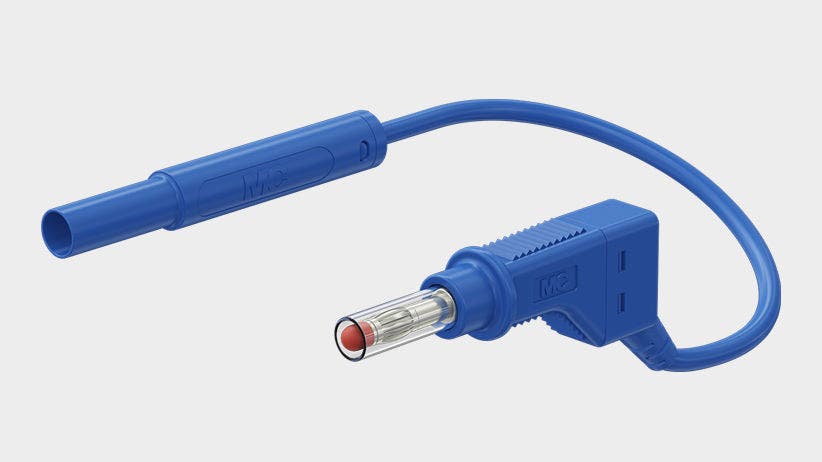

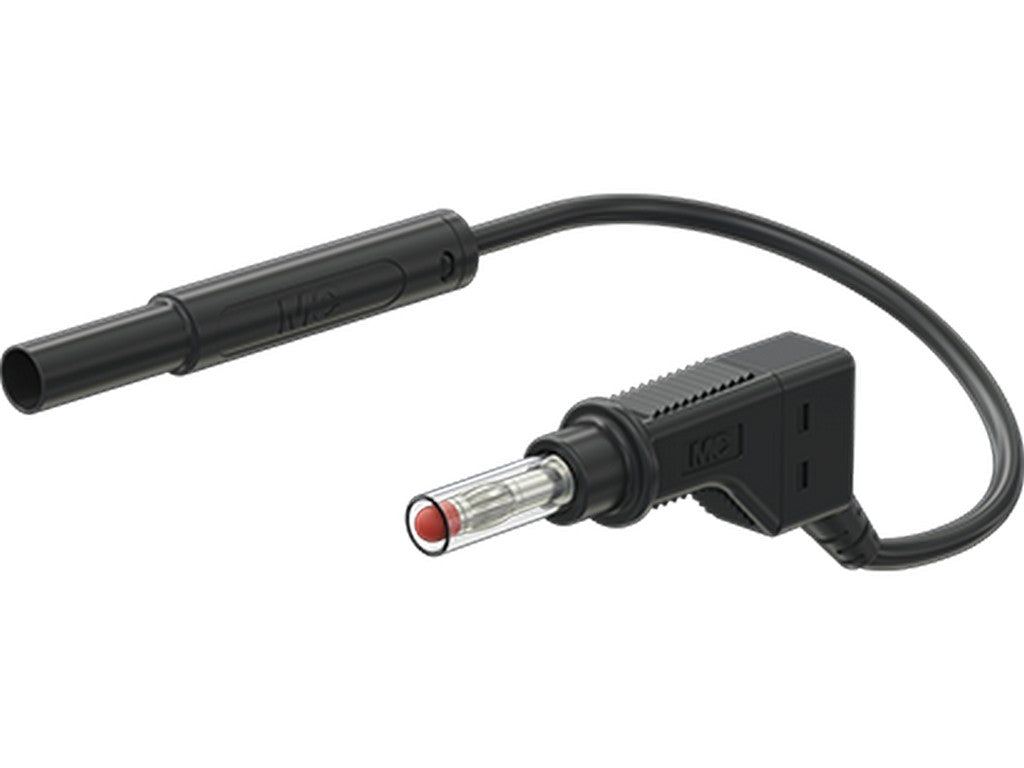

The SASK-4N-F10 is a test lead from STAUBLI designed as a flexible connecting lead with Ø 4 mm MULTILAM plugs. The product comes with one stackable plug with a protective collar and a retractable sleeve to prevent accidental contact, and the other plug is an inline Ø 4 mm MULTILAM plug with a rigid insulating sleeve suitable for connecting probes or test clips.Features and Construction
- Connector system: Ø 4 mm MULTILAM, one stackable plug with protective collar and retractable sleeve.
- Opposite end: Inline Ø 4 mm MULTILAM plug with rigid insulating sleeve.
- Contact material: contact surfaces are nickel-plated, base contact material is CuZn.
- Cable: wire insulation in PVC, conductor cross-section 1.0 mm².
Typical Applications
- For connection to electrical equipment where safety contacts have not yet been installed (usable with stackable plug and retractable sleeve to reduce risk of contact).
- For connecting measuring probes or test clips using the inline plug with rigid insulating sleeve.
Documentation
For detailed technical information and approvals, please refer to the manufacturer's datasheet:
Source
Information in this description has been verified from the Stäubli datasheet for SASK-4N-F10 (item number 66.1048-*).
Specifications
- Product: SASK-4N-F10
- Manufacturer: STAUBLI (item number 66.1048-*)
- Plug diameter: 4 mm
- Rated values: 600 V, CAT II, 19 A
- Contact surface: nickel-plated (Ni)
- Base contact material: CuZn
- Cable insulation: PVC
- Conductor cross-section: 1.0 mm²
- Available cable lengths: 100 cm; 200 cm
- Test accessory according to: IEC EN 61010-031
- Approvals: CE (indicated by Stäubli International AG in the datasheet)
