STAUBLI 66.1050-10024
The STAUBLI 66.1050-10024 is a 4 mm test lead for testing and measurement tasks. It is used to connect measuring equipment safely and stably in a professional setup where voltage and current are being used within the specified limits.

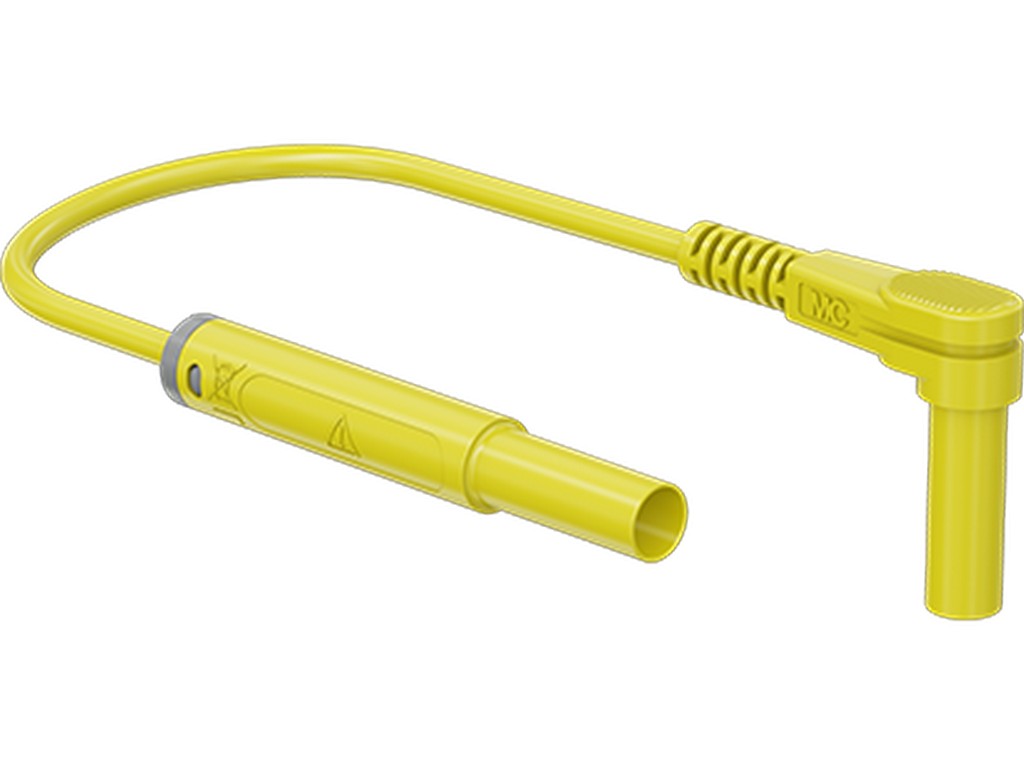

The lead has a straight Ø 4 mm MULTILAM plug at one end and an angled Ø 4 mm MULTILAM plug at the other. Both ends have a fixed insulation sleeve, which is well suited for test equipment where a more protected and tidy connection is desired. It is made with a 1.0 mm² conductor and silicone insulation, which is a practical construction in laboratory and test environments.
In practice, it is a standard test lead for measurement setups where a flexible connection between instruments, components, or test points is needed. The angled end can be useful when space is tight behind instruments or in a panel.
It is rated for 1000 V, CAT III, 19 A and 600 V, CAT IV, 19 A and is specified as test accessory according to IEC EN 61010-031. The technical contact parts are made of CuZn with a nickel finish, and the product is listed with UL and CE approvals.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1050-10024
- Product type: 4 mm test lead
- Series: SARK-4N-S10
- One end: straight Ø 4 mm MULTILAM plug with fixed insulation sleeve
- Other end: angled Ø 4 mm MULTILAM plug with fixed insulation sleeve
- Conductor: 1.0 mm²
- Insulation: silicone (SIL)
- Lengths: 100, 150 and 200 cm
- Rated values: 1000 V, CAT III, 19 A / 600 V, CAT IV, 19 A
- Standard: IEC EN 61010-031
- Contact material: CuZn
- Surface treatment on electrical contact: nickel (Ni)
- Approvals: UL, CE
See datasheet from the manufacturer
