Test lead: SLK-4N-F10 from STAUBLI
Product Overview

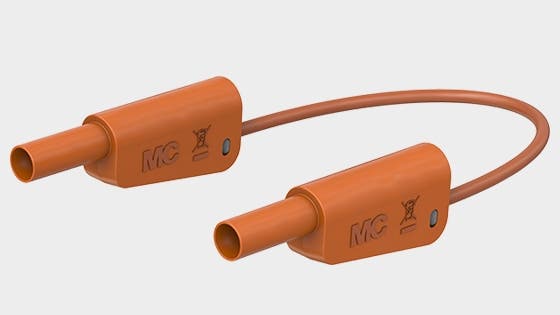

This test lead SLK-4N-F10 from STAUBLI is a flexible measuring lead with stackable Ø 4 mm MULTILAM plugs and a rigid insulation collar at both ends. The product is specified by the manufacturer and comes with known electrical limits and material descriptions.Documentation
Official product specification and technical data can be found in the manufacturer's datasheet: See manufacturer's datasheet
Typical Applications
- Used as a test and measurement connection between instruments and circuits where stackable Ø 4 mm plugs are required.
Technical Description
The SLK-4N-F10 is constructed with MULTILAM Ø 4 mm plugs with a nickel-plated contact surface and CuZn as the base material. The cable is manufactured with PVC insulation and a conductor cross-section of 1.0 mm². The manufacturer's text indicates several standard lengths, and the product's marked electrical values are specified directly in the datasheet.
Certifications and Standards
- Product information indicates compliance with IEC EN 61010-031.
- Stated approvals: UL and CE.
Specifications
- Manufacturer: STAUBLI
- Product Name: SLK-4N-F10 (item number 66.2010-*)
- Diameter of plug system: 4 mm
- Rated values: 1000 V (CAT II), 19 A; 600 V (CAT III), 19 A
- Electrical contact surface: Ni (nickel-plated)
- Base material electrical contact: CuZn
- Cable insulation: PVC
- Conductor cross-section: 1.0 mm²
- Standard lengths: 025; 050; 075; 100; 150; 200 cm
- Test accessories according to: IEC EN 61010-031
- Approvals: UL, CE
