Stäubli test lead AK-4A-F10

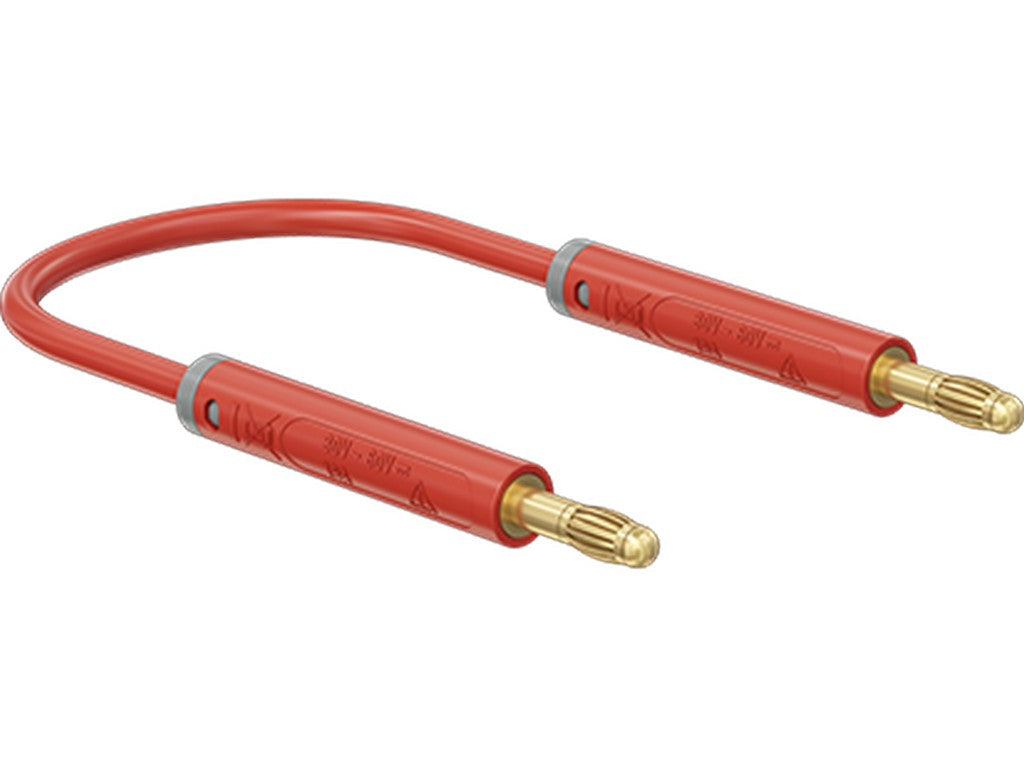

The Stäubli test lead AK-4A-F10 is a test lead with Ø 4 mm MULTILAM plugs at both ends. It is used to connect measuring equipment and test points safely and with stable contact in electrical measurement tasks.
The cable features PVC insulation and a conductor cross-section of 1.0 mm². This makes it a flexible test accessory for professional use, where the connection needs to be easy to handle in daily measurement and testing.
The contact surface is gold-plated, and the contact material is CuZn. These are relevant details for a test lead because they indicate the quality of the contact between the plug and the mating part. This solution focuses on a secure and consistent connection.
The AK-4A-F10 is available in lengths of 050, 100, and 200 cm, and this part number series covers multiple lengths. It is rated for 30 V AC / 19 A and 60 V DC / 19 A, making it suitable for measurement situations within these values.
The cable is a test accessory according to IEC EN 61010-031.
Typical applications
Used in electrical testing and measurement where a 4 mm connection between the instrument and the test point is required.
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1071-05022
- Product: Stäubli test lead AK-4A-F10
- Connector type: in-line Ø 4 mm MULTILAM plugs at both ends
- Insulation: PVC
- Conductor cross-section: 1.0 mm²
- Available lengths: 050, 100, and 200 cm
- Rated values: 30 V AC / 19 A and 60 V DC / 19 A
- Contact surface: Au
- Contact material: CuZn
- Standard colour(s): *
- Optional colour(s): *
- Test accessory acc. to IEC EN 61010-031
- See datasheet from the manufacturer
