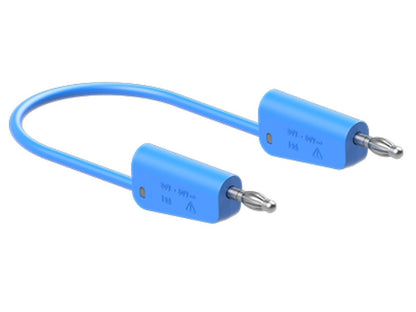

STAUBLI LK-4N-F10 test lead
The STAUBLI LK-4N-F10 is a test lead with stackable Ø 4 mm MULTILAM connectors at both ends. It is used when a secure and flexible connection is needed in test and measurement setups using 4 mm systems. The stackable design allows multiple leads to be connected at the same point, which is practical in setups with many measurements or connections.
The lead is constructed with PVC insulation and a conductor cross-section of 1.0 mm². This provides a lead suitable for general professional test use, where a flexible lead with good electrical capacity is required. It is rated for 30 V AC at 19 A and 60 V DC at 19 A.
The contact surface is nickel-plated, and the contact's base material is CuZn. This information is relevant when working with connectors where fit and contact conditions are important for a stable connection over time.
The 64.1030-* series is available in several lengths, and the datasheet indicates 25, 50, 75, 100, 150, and 200 cm. This makes it easier to choose the length that suits the task and the space available in the measurement setup.
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1030-10023
- Product series: LK-4N-F10
- Connector: stackable Ø 4 mm MULTILAM at both ends
- Conductor insulation: PVC
- Conductor cross-section: 1.0 mm²
- Rated voltage and current: 30 V AC / 19 A
- Rated voltage and current: 60 V DC / 19 A
- Contact surface: nickel (Ni)
- Contact base material: CuZn
- Available lengths in datasheet: 25, 50, 75, 100, 150 and 200 cm
- See datasheet from manufacturer
