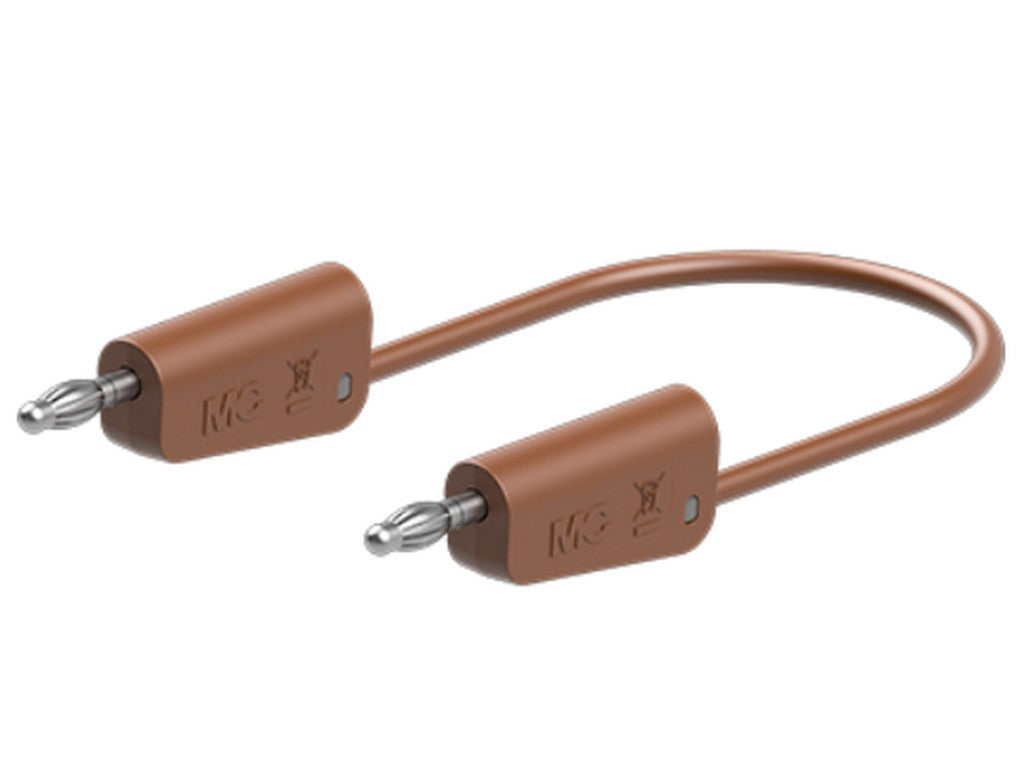

STAUBLI LK-4N-F10 Test Lead
The STAUBLI LK-4N-F10 is a very flexible test lead for measuring and testing tasks involving 4 mm systems. It features stackable Ø 4 mm MULTILAM plugs at both ends, making it suitable for setups where multiple connections need to be conveniently linked together.
In practice, this lead fits into test benches, laboratories, or when testing electrical circuits, creating a secure and clear connection between instruments, measuring points, and accessories. Its high flexibility makes it easy to handle, especially when the lead needs to be neatly arranged in the setup or moved frequently.
The lead is rated for 30 V AC / 19 A and 60 V DC / 19 A. The conductor itself has a cross-section of 1.0 mm², while the insulation is made of PVC. The contact base is made of CuZn with nickel pre-treatment, which are the materials specified for the connection part.
The LK-4N-F10 series is available in several lengths, and this one is 100 cm long. This makes it easier to choose a lead that fits the specific setup without having unnecessary cable excess.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1030-10027
- Series: LK-4N-F10
- Type: Test lead
- Plug type: Stackable Ø 4 mm MULTILAM plugs at both ends
- Rated voltage: 30 V AC / 60 V DC
- Rated current: 19 A
- Lead length: 100 cm
- Conductor cross-section: 1.0 mm²
- Insulation: PVC
- Contact material: CuZn
- Surface treatment on electrical contact: Ni
- Test accessories according to IEC EN 61010-031
