Product Overview

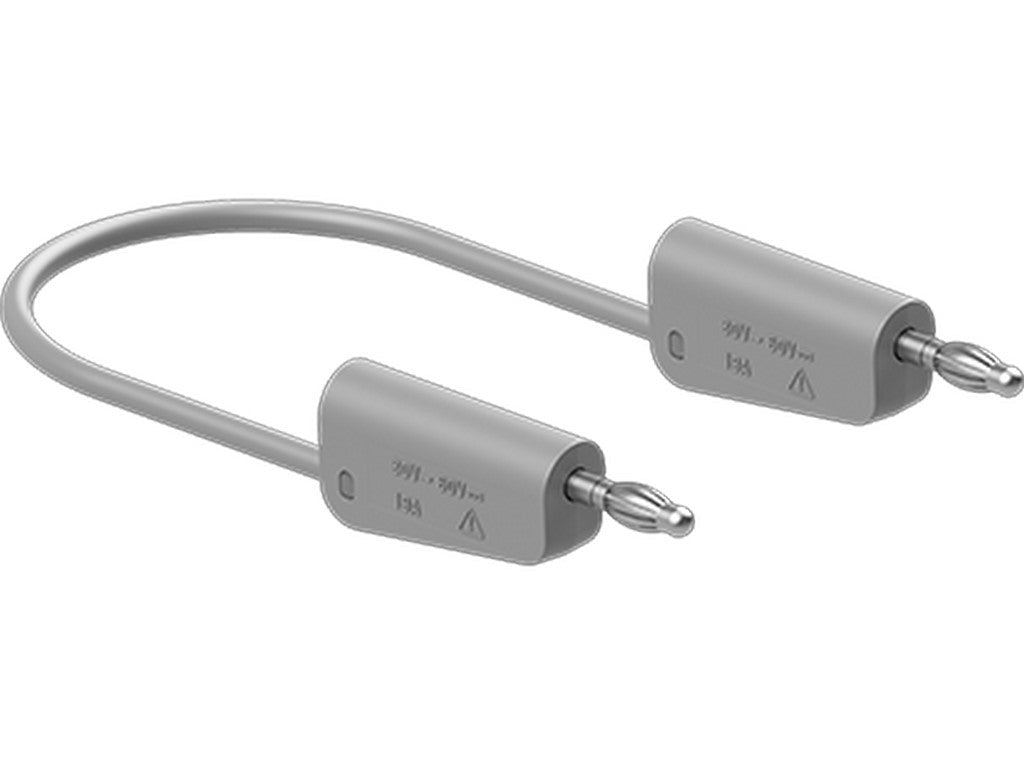

This test lead from STAUBLI, LK-4N-F10, is a flexible test lead with stackable 4 mm MULTILAM plugs at both ends. Its construction includes PVC insulation and a conductor cross-section of 1.0 mm². The LK-4N-F10 is specified with electrical contacts made of nickel-plated CuZn and meets the requirements of IEC EN 61010-031.Technical Description
- Plug type: Stackable Ø 4 mm MULTILAM plugs at both ends
- Insulation: PVC
- Conductor cross-section: 1.0 mm²
- Contact surface treatment: Ni (nickel)
- Contact material: CuZn (copper-zinc)
- Flexibility: Indicated as high flexibility in the manufacturer's text
Documentation
For technical details and complete product information, please refer to the manufacturer's datasheet.
See datasheet from manufacturerTypical Applications
The LK-4N-F10 is used as a test lead (test accessory) for connections with stackable 4 mm MULTILAM plugs at both ends. The product's electrical ratings and construction make it suitable for applications where a short, flexible test lead with the specified plug and conductor characteristics is required.
Specifications
- Product name: LK-4N-F10
- Manufacturer: STAUBLI
- Manufacturer's part number: 64.1030-02528
- Plug diameter: 4 mm
- Plugs: Stackable MULTILAM plugs, both ends
- Ratings: 30 V, 19 A (AC) / 60 V, 19 A (DC)
- Insulation: PVC
- Length: 25 cm
- Conductor cross-section: 1.0 mm²
- Contact surface: Nickel (Ni)
- Contact material: CuZn (copper-zinc)
- Standard: Test accessory acc. to IEC EN 61010-031
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
