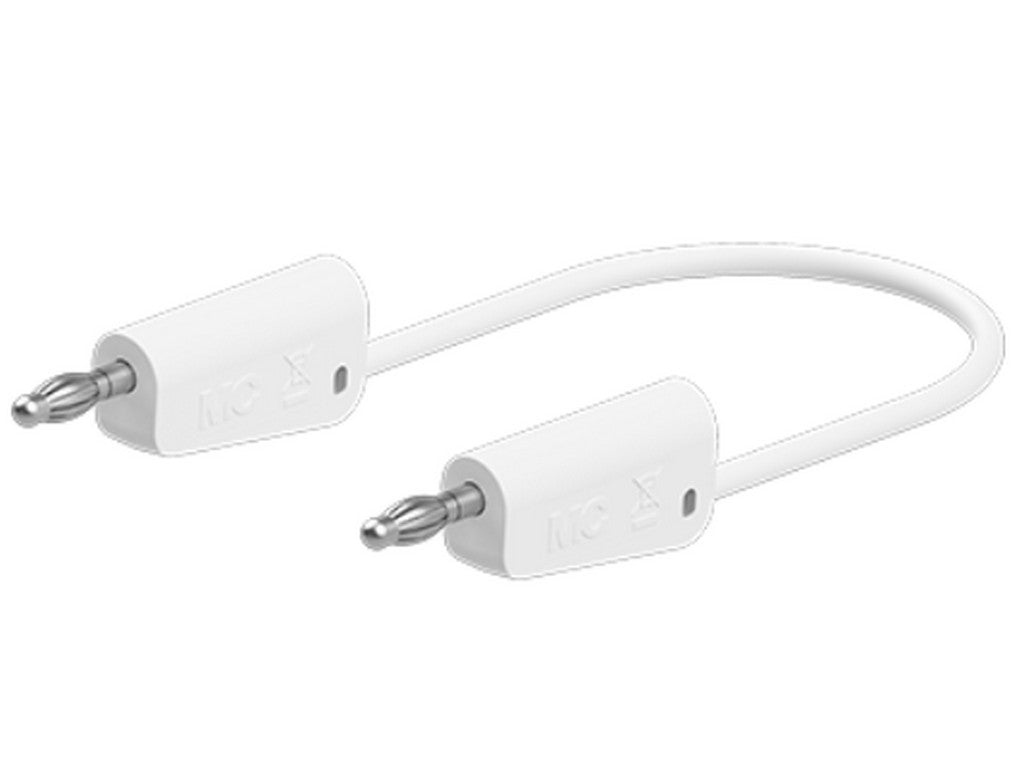

STAUBLI 64.1030-02529 test lead
The STAUBLI 64.1030-02529 is a highly flexible test lead from the LK-4N-F10 series with stackable Ø 4 mm MULTILAM plugs at both ends. It is used for creating secure and practical connections in test and measurement setups where 4 mm systems are frequently used.
The stackable design allows for building upon the connection, so multiple leads can be connected to the same point. This is an advantage in laboratories, for troubleshooting, and in other professional test setups where quick reconnections are needed without losing overview.
The lead features PVC insulation, a conductor cross-section of 1.0 mm², and electrical contacts made of CuZn with nickel plating. It is rated for 30 V and 19 A AC, as well as 60 V and 19 A DC. At the same time, it is test accessory compliant with IEC EN 61010-031, which is the relevant safety standard for this type of measurement equipment.
The length of this variant is 25 cm. The series is also available in other lengths, but this particular version is the short one, suitable when the connection needs to be compact and short.
Typical applications
- Test and measurement setups with 4 mm connections
- Laboratory work and troubleshooting
- Professional connections where stackable plugs are practical
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1030-02529
- Series: LK-4N-F10
- Plug system: Ø 4 mm
- Plug type: stackable MULTILAM plugs at both ends
- Rated voltage: 30 V AC / 60 V DC
- Rated current: 19 A
- Wire insulation: PVC
- Conductor cross-section: 1.0 mm²
- Contact material: CuZn
- Surface treatment: Ni
- Length: 25 cm
- Standard: IEC EN 61010-031
