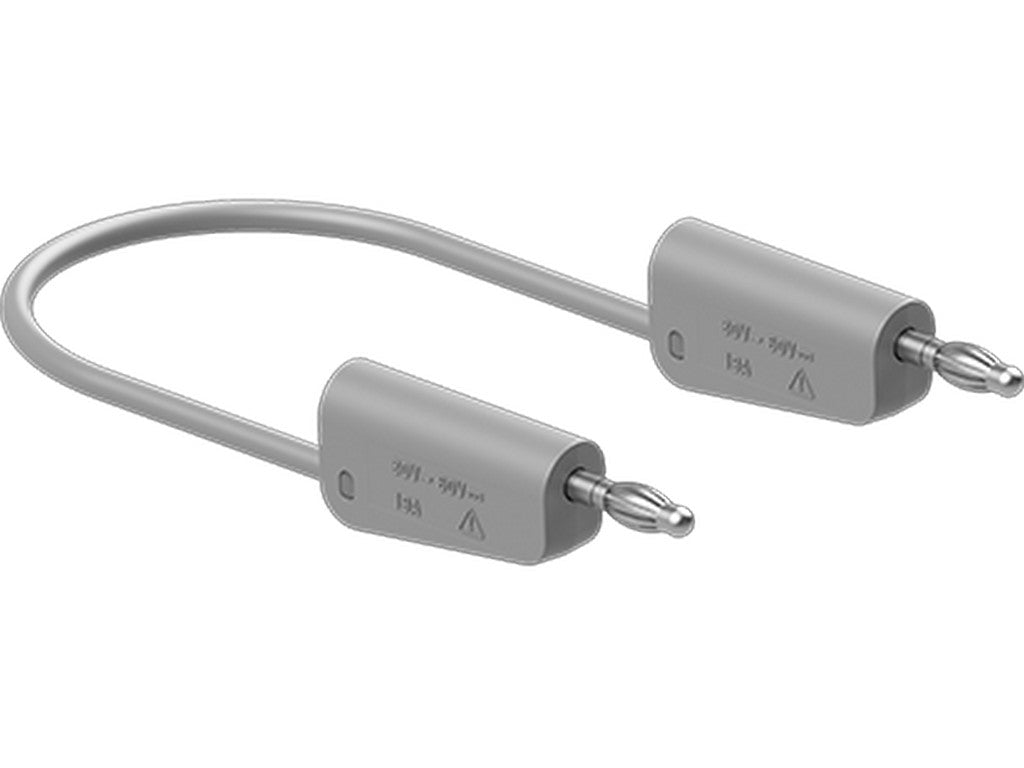

STAUBLI LK-4N-F10 test lead
The STAUBLI LK-4N-F10 is a highly flexible test lead with stackable Ø 4 mm MULTILAM connectors at both ends. It is used as a common, professional connection lead for transmitting measurement signals or making a safe and practical connection between test equipment and a specimen.
The stackable connector is useful in setups where it is desirable to connect multiple leads at the same point. This makes it easier to work with in test and measurement environments, where setups are often changed. At the same time, the lead is constructed with PVC insulation and a conductor cross-section of 1.0 mm², making it suitable for the type of handling typically seen in technical testing work.
Electrically, it is rated for 30 V AC / 60 V DC and 19 A. The contact surfaces are nickel-plated, and the contact's base material is CuZn, which are relevant details when choosing a lead that needs to fit into a standardized test environment. It belongs to test accessories according to IEC EN 61010-031.
Typical applications
Used in test and measurement contexts where a flexible lead with 4 mm connectors at both ends is required. The lengths specified in the datasheet are 25, 50, 75, 100, 150, and 200 cm.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1030-05028
- Model: LK-4N-F10
- Stackable Ø 4 mm MULTILAM connectors at both ends
- Rated values: 30 V AC / 60 V DC
- Current: 19 A
- Contact surfaces: nickel (Ni)
- Contact base material: copper-zinc (CuZn)
- Insulation: PVC
- Conductor cross-section: 1.0 mm²
- Available lengths in the datasheet: 25, 50, 75, 100, 150, and 200 cm
- Datasheet: 02.2024
The content is generated using AI - we reserve the right for errors.
Contact HIN for further product information.
