Test lead LK-4N-S10 from STAUBLI

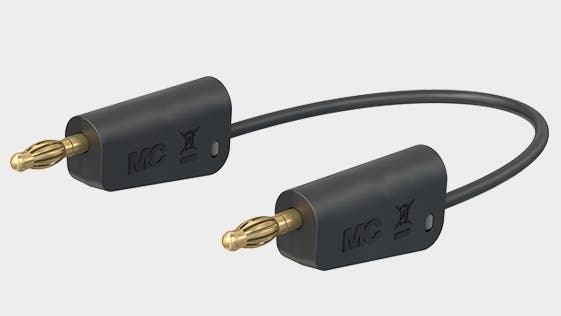

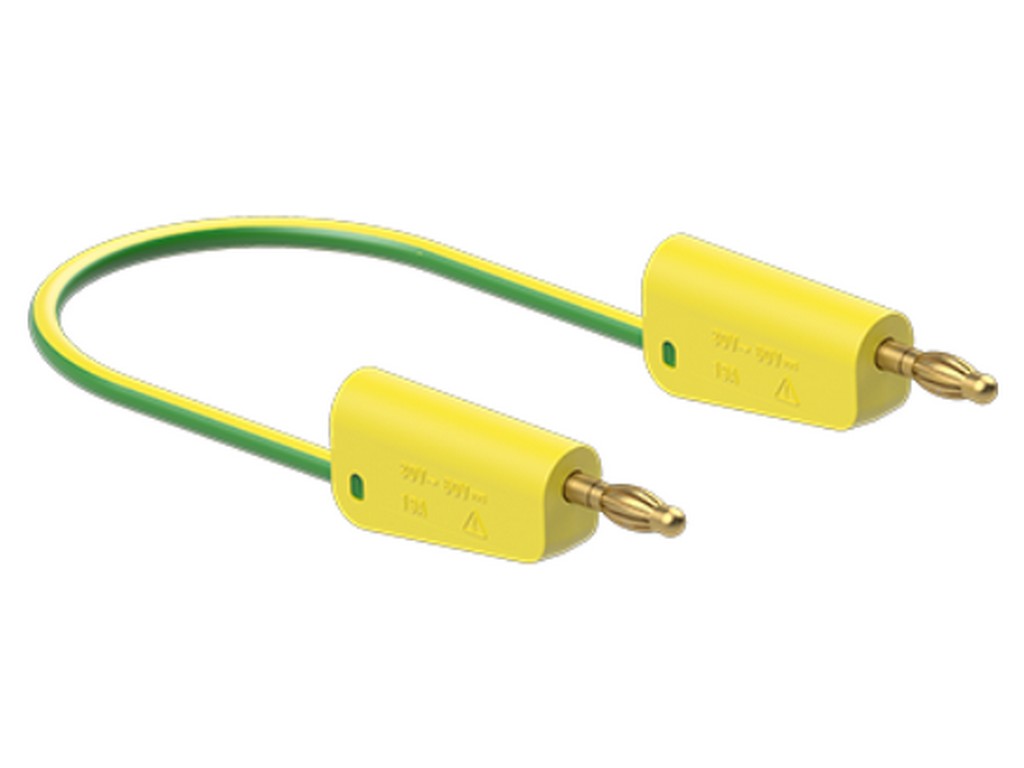

This test lead LK-4N-S10 (item number 64.1032-*) from STAUBLI is an electrical test accessory with stackable Ø 4 mm MULTILAM plugs at both ends. The product is specified as a test accessory according to IEC EN 61010-031 and is described in the manufacturer's datasheet dated 02.2024.
Construction and materials
- Plug diameter: Ø 4 mm MULTILAM, stackable
- Electrical contact: base material CuZn with nickel plating (Ni)
- Cable insulation: silicone (SIL)
- Cable cross-section: 1.0 mm²
Typical applications
LK-4N-S10 is used as a test lead/test accessory in accordance with the manufacturer's specification "Test accessory acc. to IEC EN 61010-031". The description in the datasheet identifies the product as a test lead with MULTILAM plugs, indicating its use as a conductive connection between measuring or test equipment and components under test.
Electrical values
- Rated voltage/current: 30 V AC / 19 A
- Rated voltage/current: 60 V DC / 19 A
Documentation
Further technical details and listed lengths can be found in the manufacturer's datasheet:
See datasheet from the manufacturer
Specifications
- Product name: LK-4N-S10 (item number 64.1032-*)
- Manufacturer: STAUBLI
- Diameter of plug system: 4 mm
- Plug type: MULTILAM, stackable
- Cable insulation: SIL (silicone)
- Cable cross-section: 1.0 mm²
- Rated values: 30 V AC / 19 A and 60 V DC / 19 A
- Electrical contact — base material: CuZn
- Electrical contact — surface treatment: Ni (nickel)
- Available lengths (according to datasheet): 025 (25 cm), 050, 075, 100, 150, 200 cm
- Standard/classification: Test accessory acc. to IEC EN 61010-031
- Datasheet date: 02.2024
