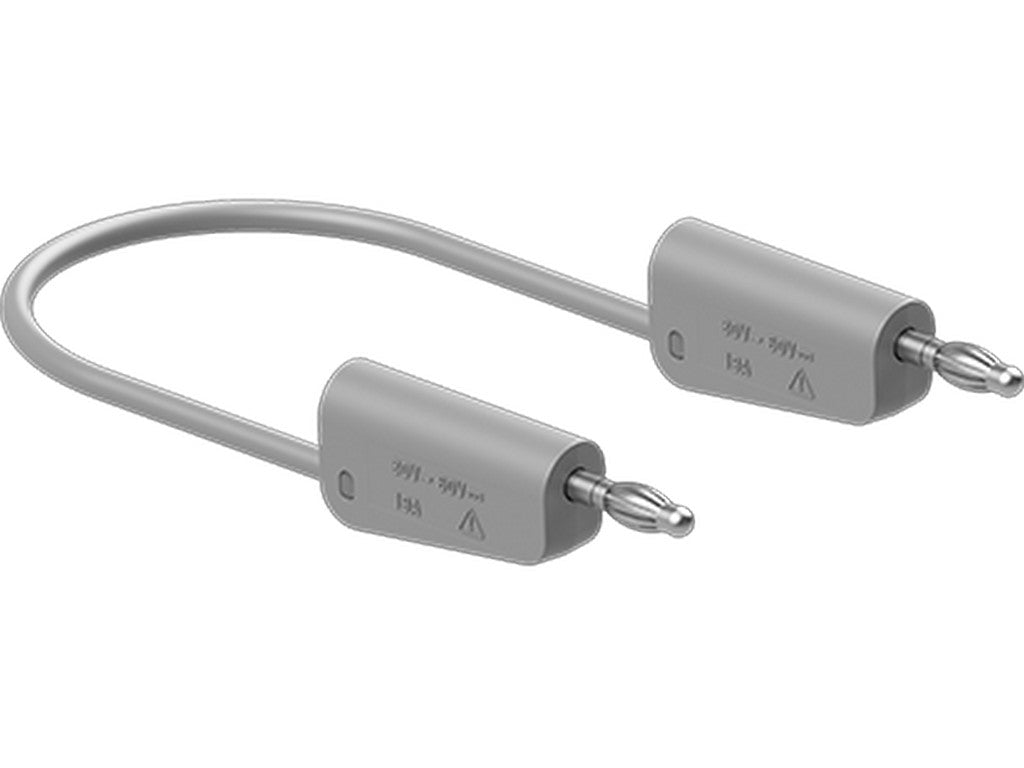

STAUBLI LK-4N-S25
The STAUBLI LK-4N-S25 is a highly flexible test lead with stackable Ø4 mm MULTILAM plugs at both ends. It is used when a reliable connection is required in test and measurement work, where the lead must also be easy to work with and able to withstand repeated handling.
The lead has silicone insulation, which makes it flexible to use, and it is constructed with a conductor cross-sectional area of 2.5 mm². This is a practical combination when working with test setups where both flexibility and current capacity are relevant.
It is rated for 30 V AC / 60 V DC at 32 A and is registered as test accessory according to IEC EN 61010-031. The plug part is made with a contact base in CuZn and with nickel surface treatment. The series is available in several lengths, including 100 cm.
If a test lead with 4 mm plug connections is required, and where it is an advantage that the plugs can be stacked, the LK-4N-S25 fits well into a professional setup of measurement and test equipment.
See datasheet from the manufacturer
Typical applications
- Test and measurement work with 4 mm connections
- Building test setups where stackable plugs are practical
- Professional use in electronics and electrical engineering environments
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-10028
- Product family: LK-4N-S25
- Plug system: Ø4 mm MULTILAM
- Plug at both ends: yes
- Stackable plugs: yes
- Wire insulation: SIL (silicone)
- Conductor cross-sectional area: 2.5 mm²
- Rated voltage: 30 V AC / 60 V DC
- Rated current: 32 A
- Contact base material: CuZn
- Surface treatment, electrical contact: Ni
- Classified as test accessory according to IEC EN 61010-031
- Available wire length: 100 cm
