Product Overview

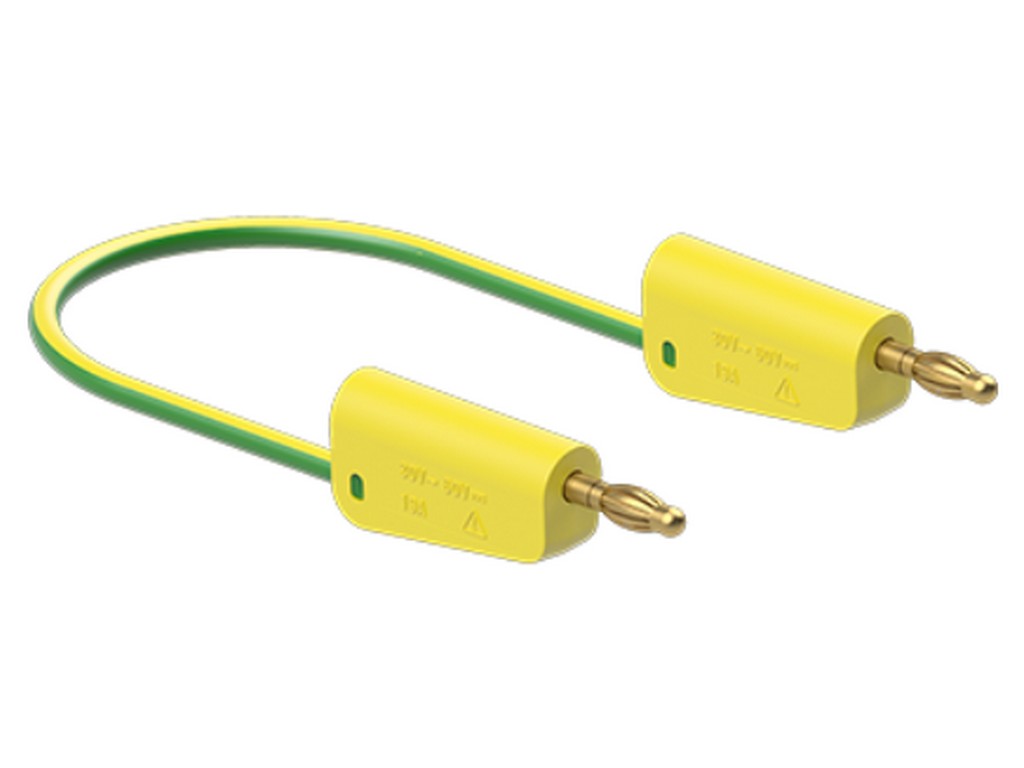

The LK-4A-S25 from STAUBLI is a highly flexible test lead (article number 64.1037-10020) with stackable Ø4 mm MULTILAM plugs at both ends. The product is constructed with a conductor cross-section of 2.5 mm² and silicone insulation. The contact surfaces are gold-plated (Au) and the contact base material is copper-zinc (CuZn). The specified rated values are 30 V AC / 32 A and 60 V DC / 32 A. Standard cable lengths include 25, 50, 75, 100, 150, and 200 cm.Materials and Construction
- Conductor: 2.5 mm²
- Insulation material: Silicone (SIL)
- Contact surface: Au (gold plating)
- Contact base material: CuZn (copper-zinc)
- Plug type: Stackable Ø4 mm MULTILAM
Typical Applications
The LK-4A-S25 is used as a test lead for measurement and test connections where stackable Ø4 mm MULTILAM plugs and flexible silicone leads are desired. The product's electrical ratings and design make it suitable as a measuring equipment accessory in accordance with the manufacturer's specifications (see documentation).Documentation
The manufacturer's datasheet contains the technical data and standard lengths that form the basis for this description: See manufacturer's datasheetSpecifications
- Article number: 64.1037-10020
- Product name: LK-4A-S25
- Plug diameter: Ø4 mm (MULTILAM)
- Conductor cross-section: 2.5 mm²
- Insulation material: Silicone (SIL)
- Contact surface: Au (gold plating)
- Contact base material: CuZn (copper-zinc)
- Rated values: 30 V AC / 32 A and 60 V DC / 32 A
- Standard cable lengths: 25, 50, 75, 100, 150, 200 cm
- Standard references in datasheet: IEC EN 61010-031 (Messzubehör)
