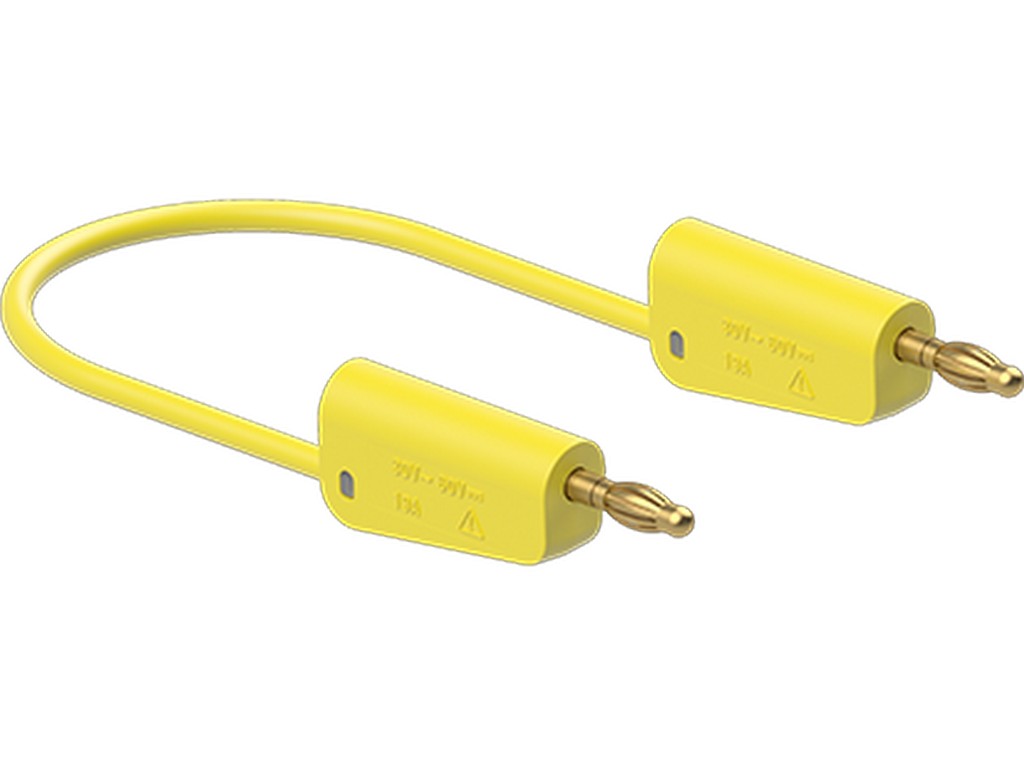

STAUBLI LK-4A-S25 test lead
The LK-4A-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used as a measuring and connecting lead for safe and stable work with test equipment in electrical and electronic environments.
What particularly characterises the lead is the combination of flexible silicone insulation and a conductor cross-section of 2.5 mm². This provides a lead that is suitable for professional use, where it often needs to be bent and handled many times without becoming stiff in use. The stackable plugs also make it possible to build on an existing connection when there is a need to connect more leads in the same place.
The contact surface is gold-plated, and the contact material is CuZn. These are relevant details in the context of a measuring lead, because the connection is thereby made for precise and stable contact between the plug and the equipment. The lead is available in several lengths, so it can be selected according to the workplace setup and the distance to be covered.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1037-10024
- Article number: 64.1037- *
- Type: LK-4A-S25 test lead
- Connectors: stackable Ø 4 mm MULTILAM plugs at both ends
- Rated voltage/current: AC 30 V / 32 A and DC 60 V / 32 A
- Contact surface: gold (Au)
- Contact material: CuZn
- Insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Available lengths: 025, 050, 075, 100, 150 and 200 cm
