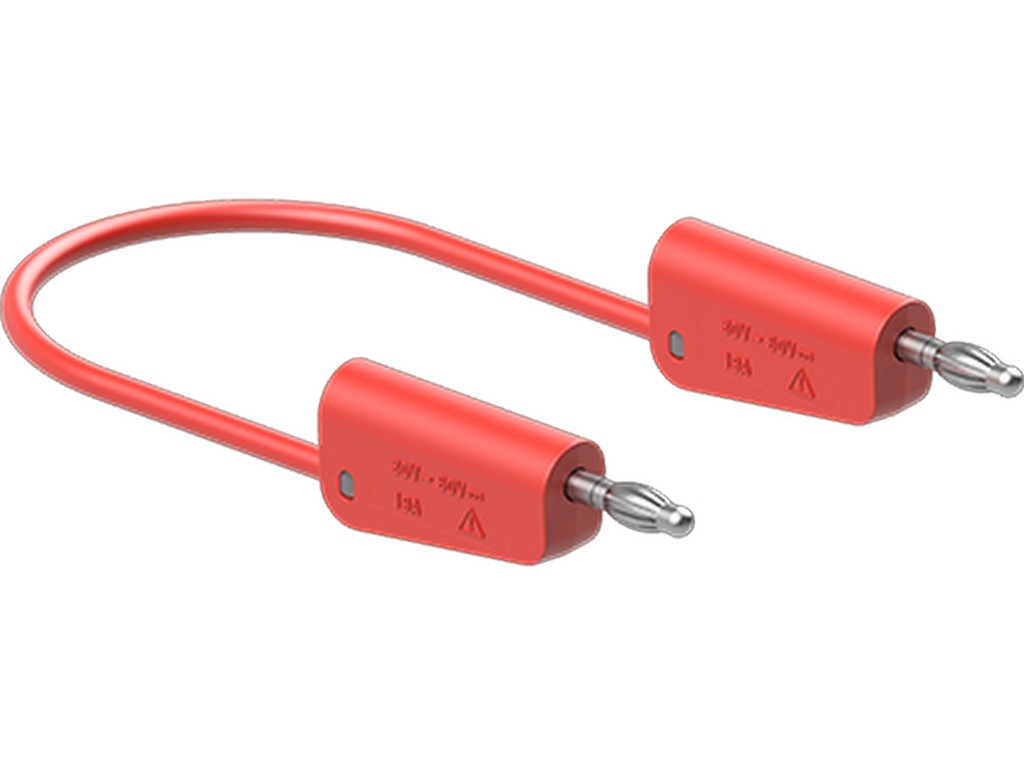

STAUBLI LK-4N-S25 Test Lead, 100 cm
The LK-4N-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used for creating secure and practical connections in testing and measurement situations where an easy-to-handle lead that can be extended in a setup environment is desired.
In practice, the stackable plugs mean that the lead can be incorporated into setups where multiple connections need to be joined at the same point. This is often useful in laboratories, production, and service work, where test equipment and measurement connections are used.
The lead has silicone insulation and a conductor cross-section of 2.5 mm². It is rated for 30 V AC at 32 A and 60 V DC at 32 A. The contact base is made of CuZn with nickel plating, and the product is designated as test accessory according to IEC EN 61010-031.
Here, the length is 100 cm, and the series is also available in other lengths. If you need the official product documentation, the manufacturer's datasheet is available here: See manufacturer's datasheet
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-10022
- Product designation: LK-4N-S25 test lead
- Connector system: Ø 4 mm MULTILAM
- Connector type: stackable at both ends
- Cable length: 100 cm
- Cable insulation: SIL
- Conductor cross-section: 2.5 mm²
- Rated voltage/current: 30 V AC, 32 A / 60 V DC, 32 A
- Contact material: CuZn
- Surface treatment on electrical contact: Ni
- Standard: test accessory acc. to IEC EN 61010-031
