STAUBLI 64.1037-10026

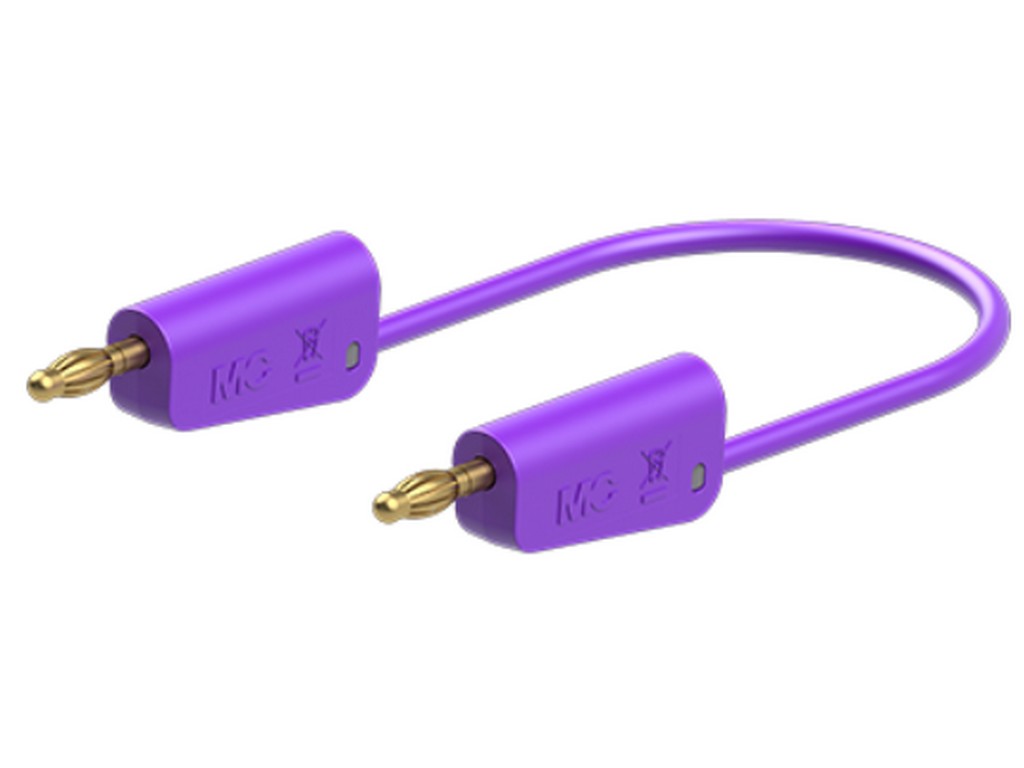

The STAUBLI 64.1037-10026 is a highly flexible test lead with Ø 4 mm MULTILAM plugs at both ends. It is used as part of measurement and test setups where a secure and convenient connection between instruments, test points, and accessories is desired.
The stackable connectors allow for extending the connection without having to disconnect the initial connection. This is a practical detail in test environments where multiple measurements are often performed simultaneously. The cable type is listed as test accessory according to IEC EN 61010-031, making it the type of equipment typically chosen for professional test and measurement workstations.
The contact surface is gold-plated, and the conductor has a cross-section of 2.5 mm². Together with the silicone insulation, this provides a cable designed for flexible test connections where handling and movement are important. The series is available in several lengths, allowing you to choose the version that fits the setup.
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1037-10026
- Type: highly flexible test lead
- Connectors: stackable Ø 4 mm MULTILAM at both ends
- System diameter: 4 mm
- Rated values: 30 V, 32 A / 60 V, 32 A
- Electrical contact surface: Au
- Base material for electrical contact: CuZn
- Conductor cross-section: 2.5 mm²
- Insulation: silicone (SIL)
- Available lengths: 25, 50, 75, 100, 150 and 200 cm
- Test accessory according to IEC EN 61010-031
