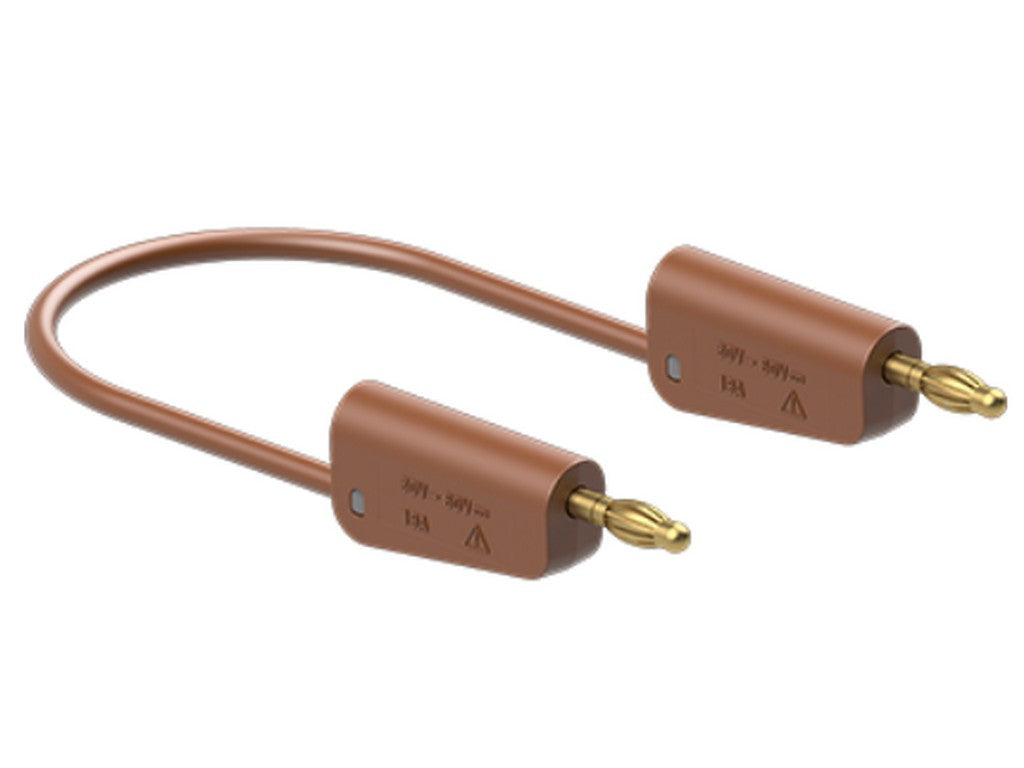

STAUBLI LK-4A-S25 test lead
The STAUBLI LK-4A-S25 is a flexible test lead for measurement and testing tasks where secure connections with 4 mm plugs are required. It is equipped with stackable Ø4 mm MULTILAM plugs at both ends, allowing it to be used in setups where multiple connections need to be consolidated at the same point.
The lead has a conductor cross-section of 2.5 mm² and silicone insulation, which is a practical combination when the lead is to be used in a professional test environment. The gold-plated contact surfaces and the CuZn contact base help ensure stable electrical contact in daily use.
As test accessory according to IEC EN 61010-031, it is aimed at work where safety and correct setup of measuring equipment are important. It is rated for 30 V AC / 32 A and 60 V DC / 32 A, making it suitable for tasks where the load conditions are within the specified values.
The lead is available in several lengths, and the variant shown is 150 cm. This makes it easier to choose a length that suits bench setups, instrument connections, and other fixed testing tasks.
Typical applications
- Electrical test and measurement setups
- Connections in laboratories and service work
- Setups with 4 mm plugs and stackable connection
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1037-15027
- Product: LK-4A-S25 test lead
- Plug system: Ø4 mm MULTILAM, stackable at both ends
- Conductor cross-section: 2.5 mm²
- Insulation: SIL (silicone)
- Length: 150 cm
- Other lengths in series: 25, 50, 75, 100, 150 and 200 cm
- Rated values: 30 V AC / 32 A and 60 V DC / 32 A
- Contact material: CuZn
- Contact surface: Au
- Standard: IEC EN 61010-031
- Datasheet: See datasheet from manufacturer
