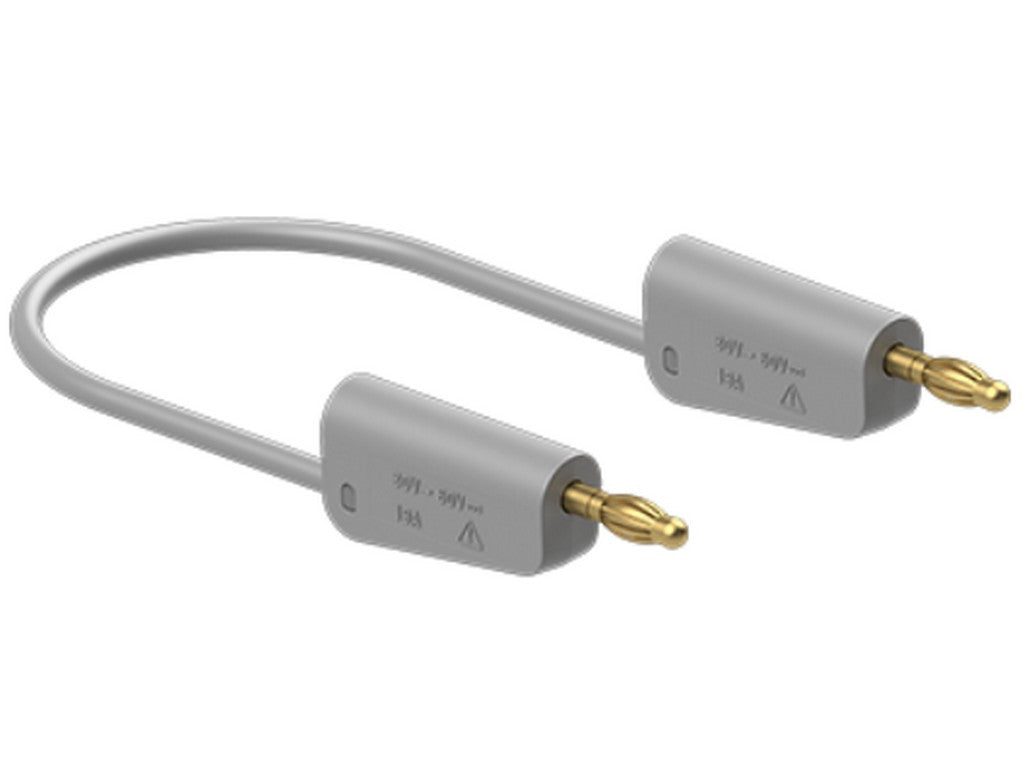

STAUBLI LK-4A-S25 test lead
The STAUBLI LK-4A-S25 is a flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used to establish secure and practical connections in testing and measurement situations where 4 mm systems are involved.
The lead is designed for professional use in electrical engineering and testing environments, requiring a lead that can withstand repeated handling while being easy to work with on the bench. It features silicone insulation, making it flexible, and has a conductor cross-section of 2.5 mm². The contacts are gold-plated, and the contact material is CuZn.
The stackable plugs at both ends allow for extending the connection without first having to disconnect the existing setup. This is a practical detail when multiple measuring points or components need to be connected in the same test arrangement.
The LK-4A-S25 is specified as a test accessory according to IEC EN 61010-031, rated for 30 V, 32 A AC, and 60 V, 32 A DC.
See datasheet from the manufacturerSpecifications
- Manufacturer: STAUBLI
- MPN: 64.1037-15028
- Product: Test Lead LK-4A-S25
- Ø 4 mm MULTILAM plugs at both ends
- Stackable plugs
- Rated values: 30 V, 32 A AC / 60 V, 32 A DC
- Contact plating: Au
- Contact material: CuZn
- Conductor insulation: silicone
- Conductor cross-section: 2.5 mm²
- Lead lengths: 25, 50, 75, 100, 150, and 200 cm
- Test accessory according to IEC EN 61010-031
