Test Lead: LK-4A-S25 from STAUBLI

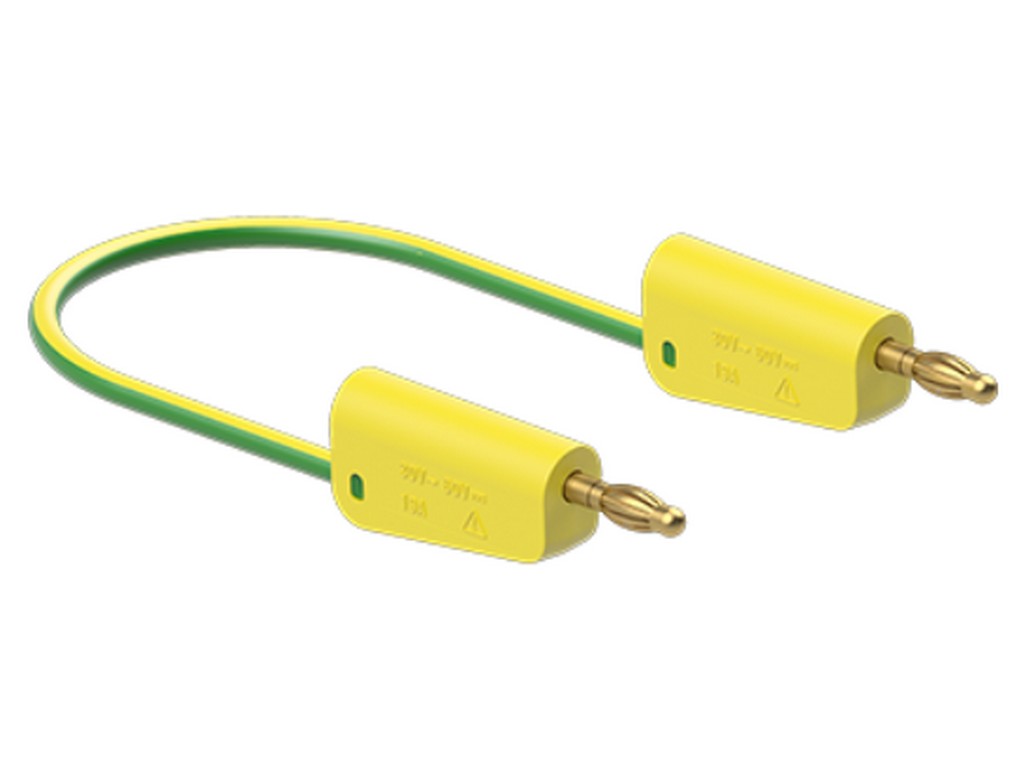

The LK-4A-S25 is a test lead from STAUBLI with stackable Ø 4 mm MULTILAM plugs at both ends. The product is specified as a highly flexible lead with silicone insulation (SIL) and a conductor cross-section of 2.5 mm². The contact surface of the electrical connections is gold-plated (Au) and the base material of the contact is CuZn.
Technical Description
- Stackable Ø 4 mm MULTILAM plug system at both ends
- Highly flexible lead with silicone insulation (SIL)
- Conductor cross-section: 2.5 mm²
- Electrical contact: Au (gold-plated) on CuZn base material
- Rated values: AC 30 V / 32 A and DC 60 V / 32 A
Further product information and official technical data can be found in the official datasheet from the manufacturer.
See datasheet from the manufacturer
Typical Applications
The LK-4A-S25 is used as a test lead/test accessory in accordance with the manufacturer's data (Test accessory acc. to IEC EN 61010-031). The description in the manufacturer's documentation indicates the product's function as a connection between measuring or testing instruments in measuring and test setups, as specified in the datasheet.
Specifications
- Item number: 64.1037-*
- Plug system diameter: 4 mm
- Plug type: Stackable MULTILAM plugs at both ends
- Lead lengths: 025; 050; 075; 100; 150; 200 cm
- Lead insulation: SIL (silicone)
- Lead cross section: 2.5 mm²
- Rated values: AC 30 V / 32 A; DC 60 V / 32 A
- Surface treatment electrical contact: Au
- Base material electrical contact: CuZn
- Test accessory acc. to IEC EN 61010-031
The content has been generated with the help of AI – we reserve the right for errors.
Contact HIN for further information about the product.
