STAUBLI LK-4A-S25, MPN 64.1037-15024

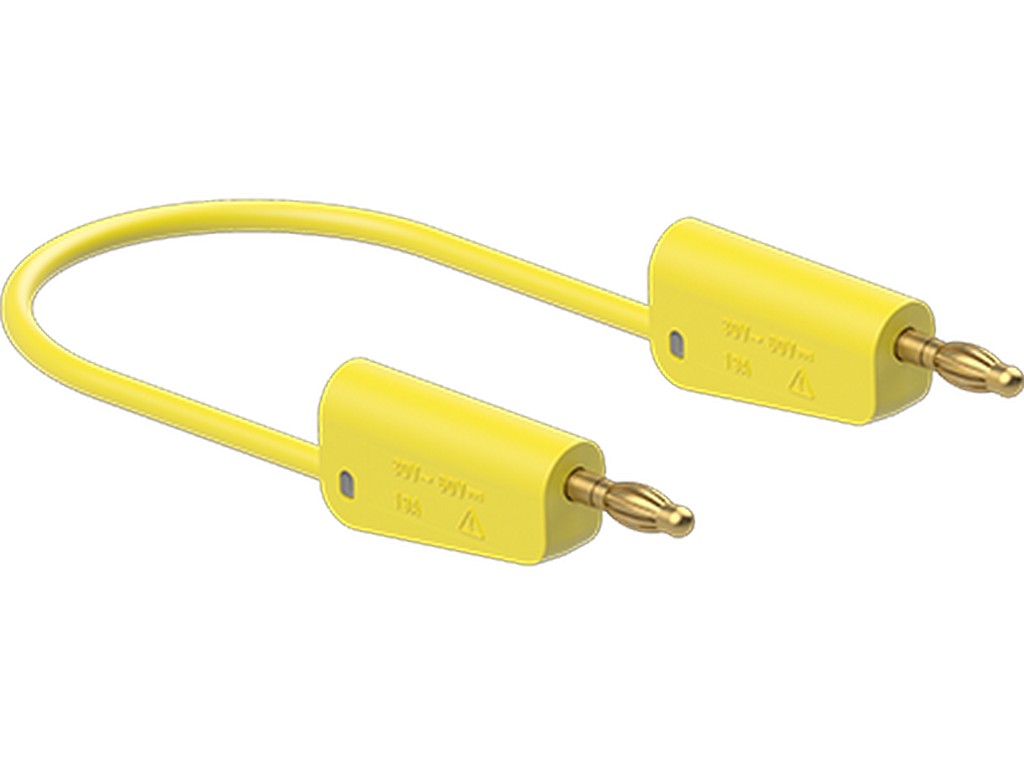

The LK-4A-S25 is a highly flexible test lead for measurement and testing tasks where Ø 4 mm MULTILAM connections are used at both ends. It is designed as a professional test accessory and is intended for use in environments where electrical measurements and equipment testing are performed.
The practicality of the cable lies especially in the combination of stackable connectors and the flexible silicone insulation. Stackable connectors allow for extending the connection in setups where multiple leads need to be connected at the same point. At the same time, silicone is an advantage when the cable needs to be bent and moved frequently without becoming stiff in use.
With a conductor cross-section of 2.5 mm² and ratings of 30 V, 32 A AC and 60 V, 32 A DC, it is suitable for tasks requiring a robust test lead in a professional context. The contact surface is gold-plated, and the contact material is CuZn, which is an important part of the electrical contact surface in this type of equipment.
The lead is specified as a test accessory according to IEC EN 61010-031, and the current variant has a length of 150 cm. The datasheet is from February 2024.
See datasheet from the manufacturer
Typical applications
Used for electrical testing and measurement tasks where a flexible lead with 4 mm connections at both ends is required.
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1037-15024
- Product Type: Test lead
- Series/Type: LK-4A-S25
- Connector: Stackable Ø 4 mm MULTILAM plugs at both ends
- Cable length: 150 cm
- Conductor cross-section: 2.5 mm²
- Insulation: Silicone (SIL)
- Ratings: 30 V, 32 A AC / 60 V, 32 A DC
- Contact surface: Gold (Au)
- Contact base: CuZn
- Standard: IEC EN 61010-031
- Datasheet: February 2024
