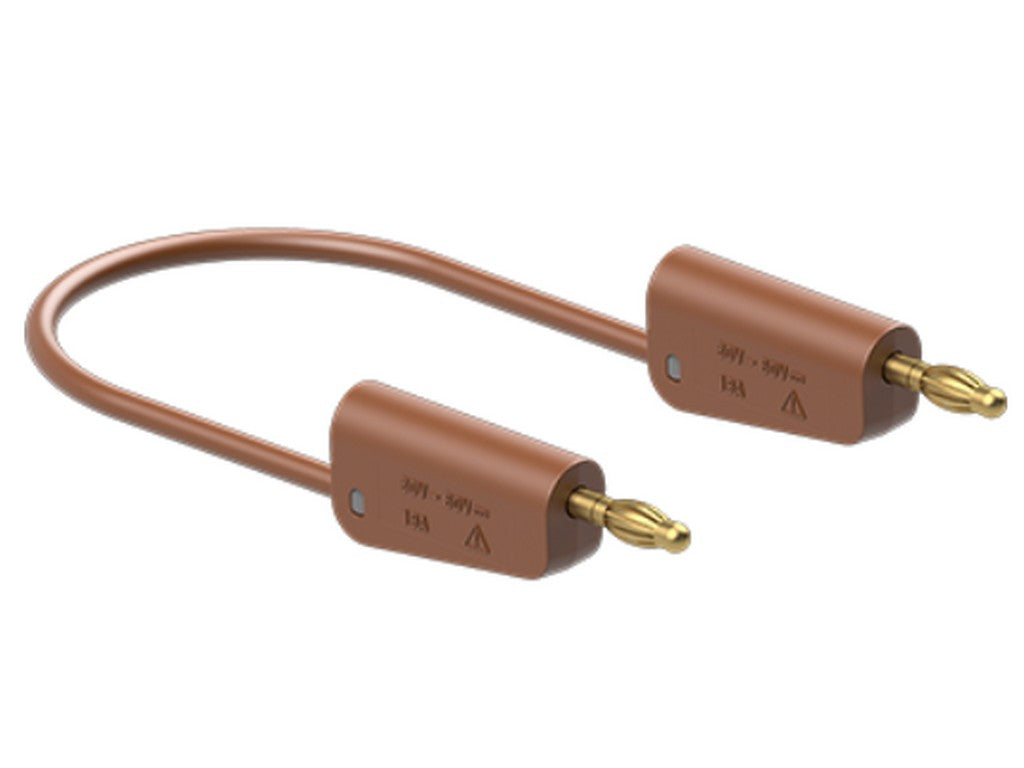

STAUBLI LK-4A-S25, test lead with 4 mm connectors
The LK-4A-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM connectors at both ends. It is used to create a secure and practical connection in test and measurement tasks involving 4 mm systems.
The lead is constructed with a 2.5 mm² conductor cross-section and silicone insulation, making it suitable for professional use where the lead needs to be handled frequently. The stackable connectors allow for extending the connection without necessarily having to disconnect the existing setup. This is an advantage in test environments, laboratories, and workshops, where flexible work with many measurement points is often required.
The electrical contact has CuZn as the base material and an Au surface treatment. The series is specified as test accessory according to IEC EN 61010-031, and the nominal values are 30 V / 32 A AC and 60 V / 32 A DC.
Typical applications
- Testing and measurement with 4 mm connector systems
- Connection in laboratories and technical workshops
- Flexible connections where stackable connectors are desired
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1037-02527
- Product name: LK-4A-S25
- Connector system: Ø 4 mm MULTILAM
- Connectors at both ends
- Stackable connectors
- Conductor cross-section: 2.5 mm²
- Insulation: SIL (silicone)
- Nominal voltage/current: 30 V / 32 A AC
- Nominal voltage/current: 60 V / 32 A DC
- Contact base material: CuZn
- Contact surface: Au
- Available lengths: 25, 50, 75, 100, 150 and 200 cm
- Test accessory according to IEC EN 61010-031
- See datasheet from the manufacturer
