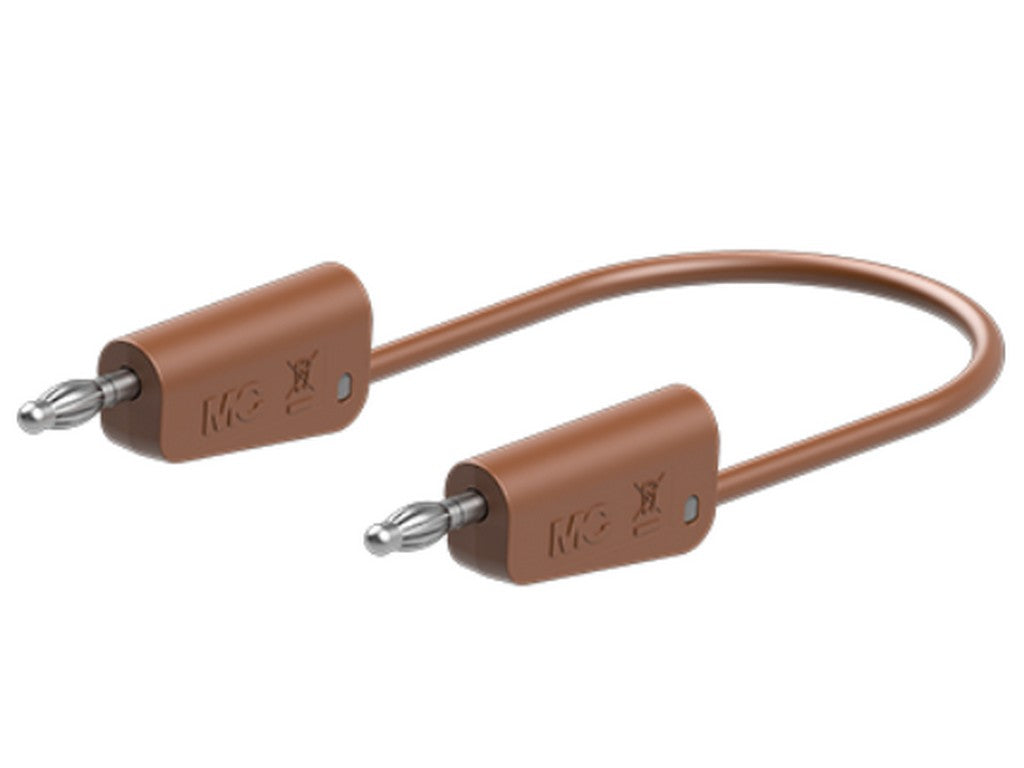

STAUBLI LK-4N-S25
The STAUBLI LK-4N-S25 is a test lead for professional measurement and testing work, where a flexible connection between equipment and the measuring point is required. It features Ø 4 mm MULTILAM plugs at both ends, which can be stacked, making the lead easy to integrate into setups where multiple connections are needed in limited space.
The lead is constructed with silicone insulation and a conductor cross-section of 2.5 mm². This results in a lead designed for test environments where a flexible lead is desired, which is also dimensioned for the specified loads. The stated ratings are 30 V, 32 A and 60 V, 32 A, and the accessory is specified according to IEC EN 61010-031.
The contact surfaces are made of CuZn with nickel surface treatment, and the length is available in several variants from 25 cm to 200 cm. This makes it easier to choose a lead that fits the specific setup in the workshop, laboratory, or at the test bench.
See datasheet from the manufacturer
Typical applications
- Test and measurement setups in electrical and electronics work
- Connections to measuring equipment using 4 mm plugs
- Setups where stackable plugs provide more flexible cabling
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-02527
- Product: LK-4N-S25 test lead
- Plug system: Ø 4 mm MULTILAM plugs at both ends
- Insulation: Silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Lead lengths: 025, 050, 075, 100, 150 and 200 cm
- Ratings: 30 V, 32 A / 60 V, 32 A
- Contact material: CuZn
- Surface treatment: Ni
- Standard: IEC EN 61010-031
The content has been generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
