Product Overview

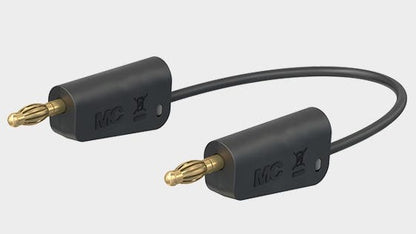

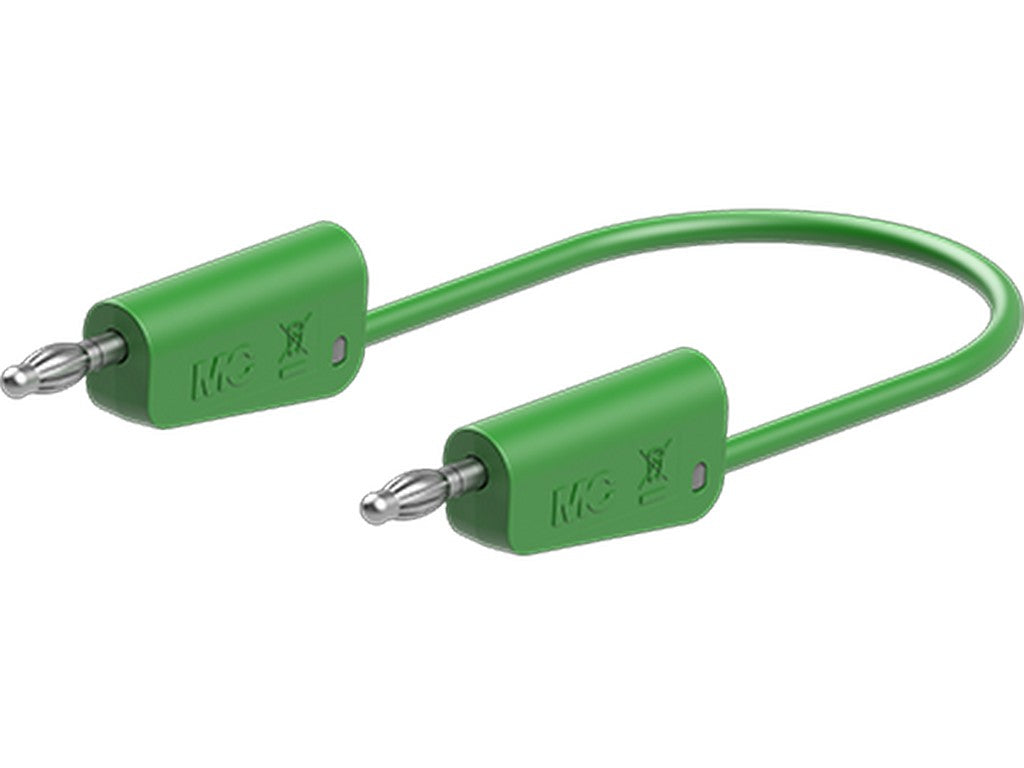

This test lead LK-4N-S25 from Stäubli is a test accessory designed for connections with stackable Ø 4 mm MULTILAM plugs at both ends. The LK-4N-S25 is described as highly flexible and is indicated on the product datasheet with silicone (SIL) cable sheathing and a conductor cross-section of 2.5 mm². Electrical contact surfaces are nickel-plated, and the base material for contact parts is CuZn.Technical Characteristics
- Stackable Ø 4 mm MULTILAM plugs at both ends
- Highly flexible cable
- Cable insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Electrical contact surface: nickel (Ni)
- Base material for contact: CuZn
- Specified as test accessory according to IEC EN 61010-031
Typical Applications
Used as a test lead/test accessory for measuring and testing tasks where a flexible connection with Ø 4 mm MULTILAM plugs and a conductor cross-section of 2.5 mm² is required. The LK-4N-S25 is specified as a test accessory according to IEC EN 61010-031 in the manufacturer's documentation.Documentation
The official product documentation specifies technical data and cable lengths. See datasheet from manufacturer (datasheet dated 02.2024).Specifications
- Product name: LK-4N-S25
- Stäubli item number: 64.1036-*
- Diameter of plug system: 4 mm
- Rated values: AC 30 V / 32 A and DC 60 V / 32 A
- Electrical contact surface treatment: Ni (nickel)
- Base material for electrical contact: CuZn
- Standard cable lengths: 025; 050; 075; 100; 150; 200 cm
- Cable insulation: SIL (silicone)
- Conductor cross-section: 2.5 mm²
- Test accessory according to: IEC EN 61010-031
- Datasheet date: 02.2024
