STAUBLI LK-4N-S25

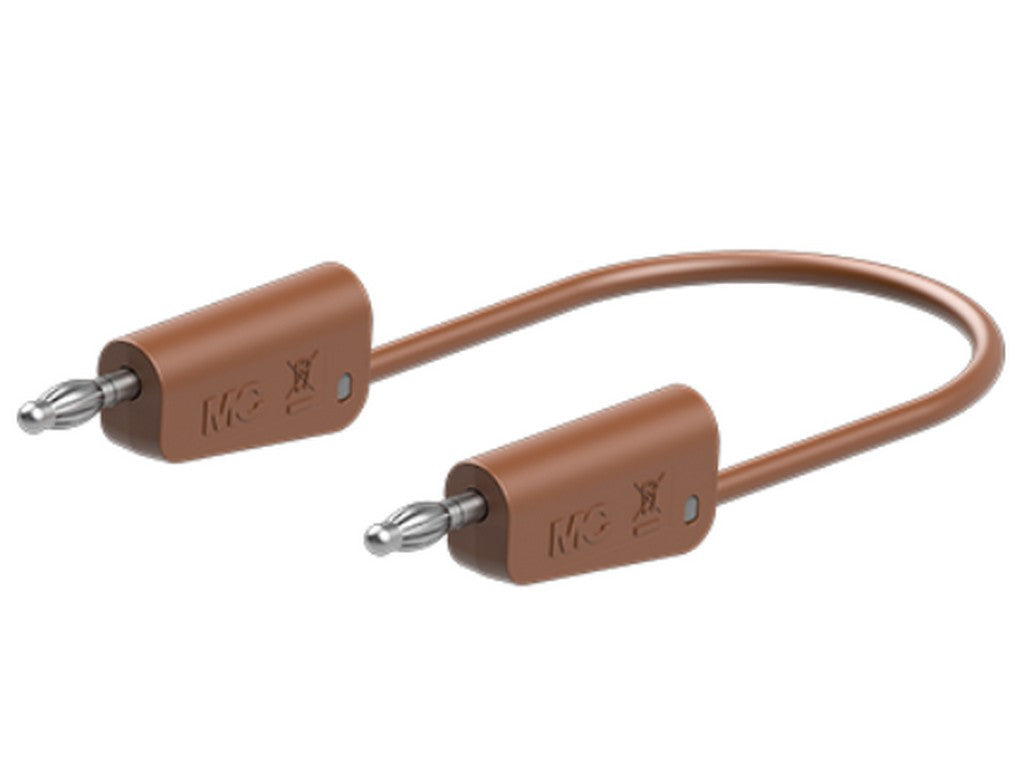

The STAUBLI LK-4N-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used as part of test accessories in measurement and testing situations where a secure and practical connection between test equipment and the measurement point is required.
The stackable plug allows for connections where multiple leads can be connected to the same contact point. This is an advantage in setups where measurements are systematically performed, and leads need to be quickly connected and disconnected. The silicone insulation makes the lead pliable, making it suitable for situations where an easily manageable lead is needed for daily use.
The LK-4N-S25 series is classified as test accessory according to IEC EN 61010-031. It is rated for 30 V AC / 32 A and 60 V DC / 32 A, making it suitable for professional testing tasks where electrical limits need to be clearly defined. The conductor cross-section is 2.5 mm², and the contact surface is nickel-plated, while the contact base material is CuZn.
Typical applications
- Electrical test and measurement setups
- Laboratory work and testing
- Connections where stackable 4 mm plugs are an advantage
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-05027
- Series: LK-4N-S25
- Connector type: stackable Ø 4 mm MULTILAM plugs at both ends
- Rated voltage/current: 30 V AC / 32 A
- Rated voltage/current: 60 V DC / 32 A
- Contact surface: nickel
- Contact base material: CuZn
- Cable insulation: silicone
- Conductor cross-section: 2.5 mm²
- Cable lengths: 025, 050, 075, 100, 150 and 200 cm
- Classification: test accessory according to IEC EN 61010-031
