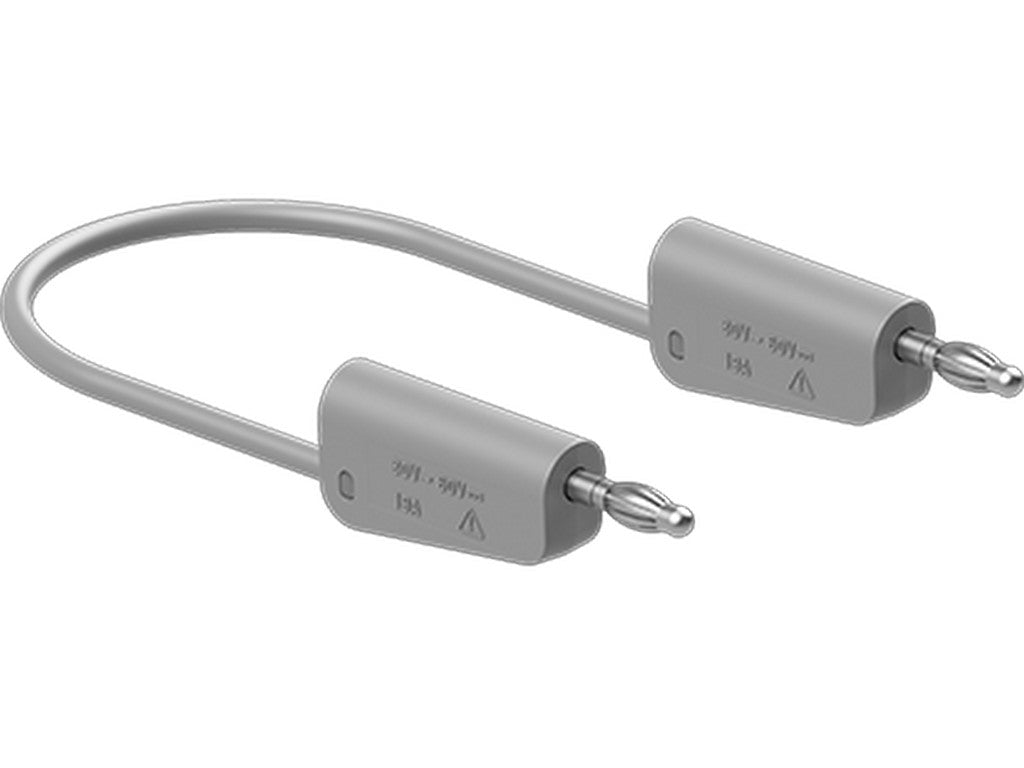

STAUBLI LK-4N-S25 Test Lead
The STAUBLI LK-4N-S25 is a flexible test lead with 4 mm MULTILAM connectors at both ends. It is used as part of the LK-4N-S25 series and is intended as a test accessory in professional measurement and test setups where a safe and practical connection between instrument and test point is required.
The lead is designed for work where frequent changes between measurements are necessary. The stackable connectors allow for extending the connection, and its high flexibility makes it easier to handle on a test bench or in a measurement setup. The silicone insulation is also an advantage when the lead needs to move during daily use.
The electrical data shows that it is rated for 30 V and 32 A AC, as well as 60 V and 32 A DC. This is important to note when matching the lead with the equipment it is used with. The contact material is CuZn with a nickel surface, and the conductor cross-section is 2.5 mm².
As a test accessory, it is specified according to IEC EN 61010-031, making it suitable for environments where standardized requirements for measuring equipment and accessories are followed.
See datasheet from the manufacturer
Typical Applications
- Test and measurement setups
- Electronics production
- Professional connection between measuring instrument and test point
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-05028
- Series: LK-4N-S25
- Plug system: 4 mm
- Connectors: stackable MULTILAM plugs at both ends
- Rated values: 30 V, 32 A (AC)
- Rated values: 60 V, 32 A (DC)
- Cable insulation: SIL
- Conductor cross-section: 2.5 mm²
- Contact material: CuZn
- Surface treatment on electrical contact: Ni
- Specified as test accessory according to IEC EN 61010-031
- Available lengths: 025, 050, 075, 100, 150 and 200 cm
