STAUBLI LK-4N-S25

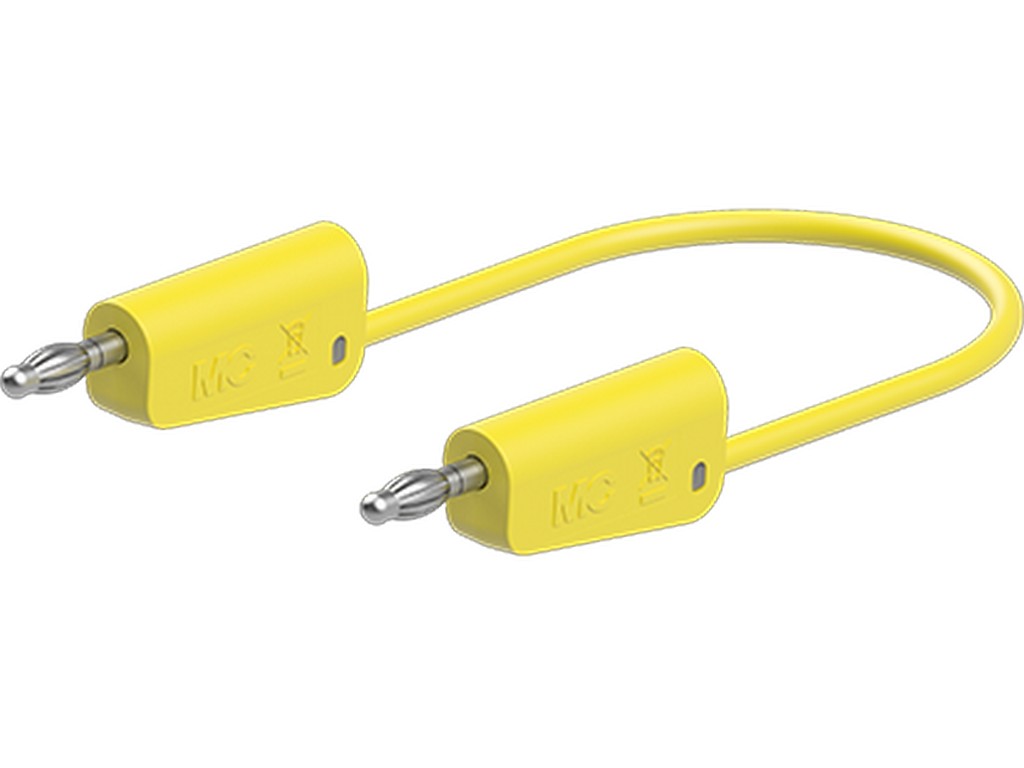

The LK-4N-S25 is a highly flexible test lead with 4 mm MULTILAM connectors at both ends. It is used where test equipment needs to be connected securely and quickly, and where the lead must also withstand repeated handling during a professional workday.
The connector system is stackable, allowing multiple connections to be built up on the same connection point when the setup requires it. This makes it practical for test setups, measurement work, and other situations where efficient work with 4 mm connections is needed.
The lead is rated for 30 V AC / 60 V DC and 32 A. The contact surfaces are nickel-plated, and the base material of the contact is CuZn. The insulation itself is made of silicone, which is well-suited for a lead that needs to be flexible and easy to work with. The conductor's cross-section is 2.5 mm².
The length is available in several variants, including 025, 050, 075, 100, 150, and 200 cm, so it can be chosen according to the specific setup. The LK-4N-S25 is listed as test accessory according to IEC EN 61010-031, and the datasheet is dated 02.2024.
See datasheet from the manufacturer
Typical applications
- Test and measurement setups with 4 mm connections
- Connections where stackable connectors are desired
- Professional laboratory and workshop environments
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-05024
- Connector system: Ø 4 mm MULTILAM on both ends
- Lead type: highly flexible test lead
- Electrical rating: 30 V AC / 60 V DC
- Current: 32 A
- Contact surface: nickel-plated
- Contact material: CuZn
- Insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Lead lengths: 025, 050, 075, 100, 150 and 200 cm
- Standard: IEC EN 61010-031
- Datasheet: 02.2024
The content is generated with the help of AI - we reserve the right for errors.
Contact HIN for further information about the product.
