STAUBLI LK-4N-S25

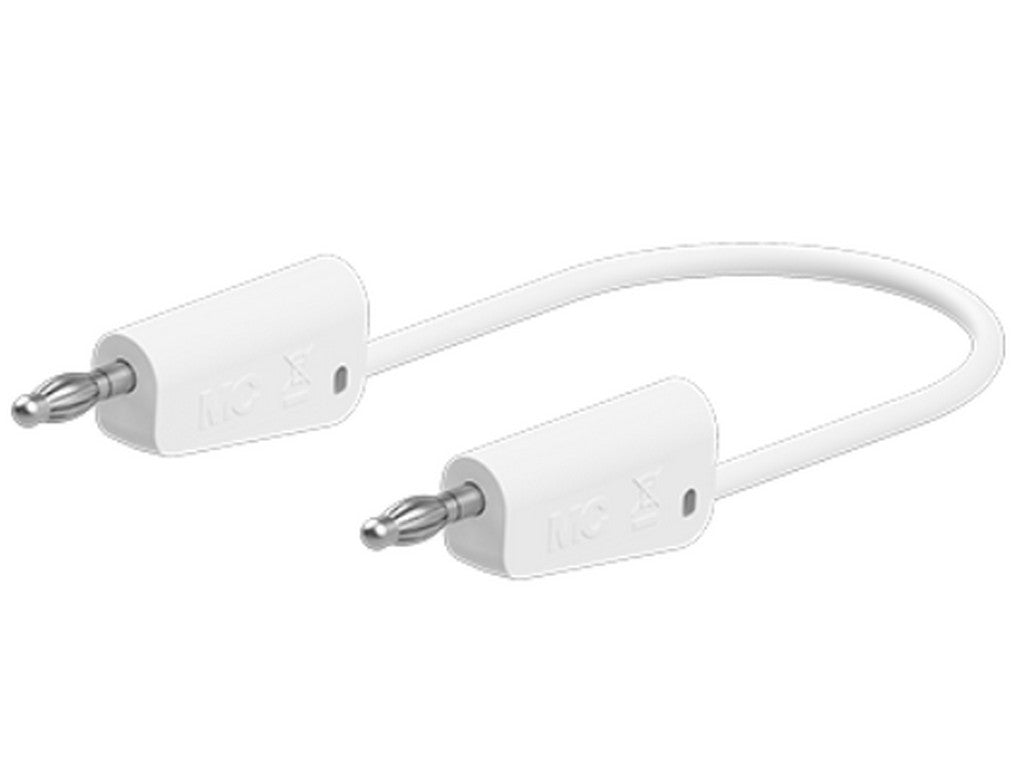

The STAUBLI LK-4N-S25 is a very flexible test lead with stackable Ø 4 mm MULTILAM connectors at both ends. It is used in test and measurement setups where equipment needs to be connected quickly and the lead must withstand frequent handling.
The lead is constructed with silicone insulation and a conductor cross-section of 2.5 mm². This results in a lead that is easy to work with in practice, even when the installation needs to be close to other measurement equipment. The stackable connectors allow multiple leads to be connected at the same point when the setup requires it.
The electrical contact parts are made of CuZn with nickel surface treatment, and the lead is specified according to IEC EN 61010-031. It is rated for 30 V AC / 32 A and 60 V DC / 32 A. Available lengths are 025, 050, 075, 100, 150, and 200 cm.
If you need to choose a spare part or an additional test lead for a professional measurement task, the combination of flexibility, stackable 4 mm connectors, and documented marking is particularly noteworthy.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-05029
- Product: LK-4N-S25
- Connector system: Ø 4 mm
- Connector type: stackable MULTILAM plugs at both ends
- Lead insulation: SIL
- Conductor cross-section: 2.5 mm²
- Rated values: 30 V AC / 32 A and 60 V DC / 32 A
- Contact material: CuZn
- Surface treatment on electrical contact: Ni
- Standard: IEC EN 61010-031
- Available cable lengths: 025, 050, 075, 100, 150, and 200 cm
