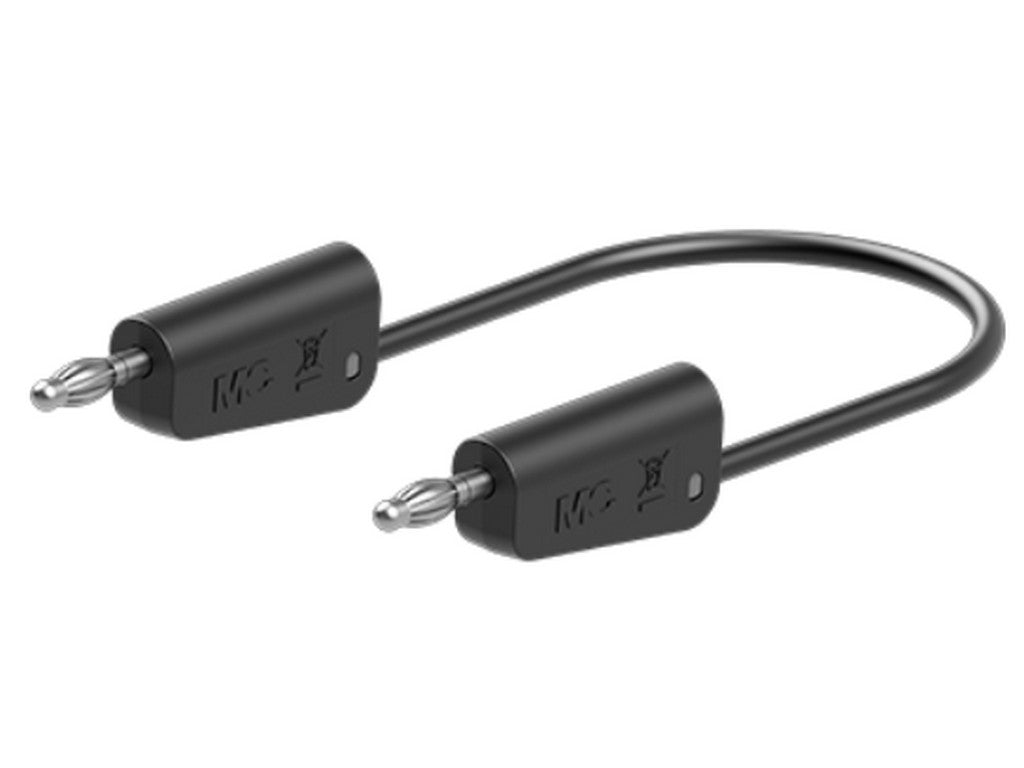

STAUBLI LK-4N-S25 Test Lead
The LK-4N-S25 is a highly flexible test lead with stackable Ø 4 mm MULTILAM plugs at both ends. It is used as a convenient connecting lead in test setups where secure electrical contact is desired, along with the ability to extend the connection using stackable plugs.
The plug system is 4 mm, and the lead is constructed with silicone insulation. This makes it suitable for work where a lead needs to be handled smoothly in a busy test or measurement situation. The conductor cross-section is 2.5 mm², and the electrical contact is made of CuZn with nickel plating.
The LK-4N-S25 is specified as a test accessory according to IEC EN 61010-031, and the stated ratings are AC 30 V / 32 A and DC 60 V / 32 A. The lead is available in several lengths, so it can be chosen to suit the setup.
See datasheet from the manufacturer
Typical applications
The lead is typically used in test and measurement work where 4 mm plugs are used and there is a need for a flexible connection between equipment, measurement points, or for building a test chain.
Specifications
- Manufacturer: STAUBLI
- MPN: 64.1036-05021
- Product: LK-4N-S25 test lead
- Connectors: stackable Ø 4 mm MULTILAM plugs at both ends
- Plug system diameter: 4 mm
- Ratings: AC 30 V / 32 A, DC 60 V / 32 A
- Cable insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Contact material: CuZn
- Surface treatment: nickel (Ni)
- Cable lengths specified by the manufacturer: 025, 050, 075, 100, 150, and 200 cm
- Classification: test accessory acc. to IEC EN 61010-031
