STAUBLI SAK-4N-F10-ILF

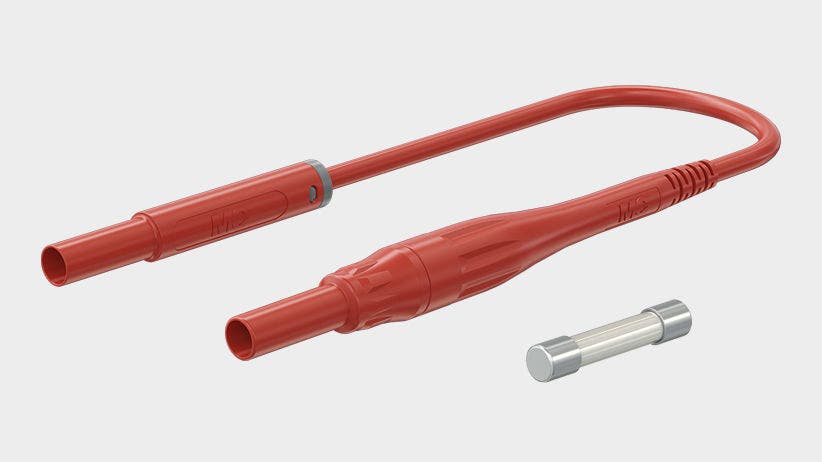

The STAUBLI SAK-4N-F10-ILF is a test lead with integrated high-breaking capacity fuse. It is used for fuse-protected measurements with standard Ø 4 mm safety probes and test clips. In practice, this means that the lead functions as both a connecting cable and an additional protection in the measuring circuit.
The lead is constructed with an in-line Ø 4 mm MULTILAM plug at both ends and fixed insulation sleeves. The two-part screw fuse holder accommodates a 6.3 x 32 mm high-breaking capacity fuse, which is not included. This makes it easy to replace the fuse when needed, without replacing the entire lead.
The SAK-4N-F10-ILF is rated for 1000 V, CAT IV according to IEC/EN 61010-031, making it suitable for professional testing and measurement work where safety is part of the setup. The lead has PVC insulation, a conductor cross-section of 1.0 mm², and electrical contacts made of nickel-plated CuZn. It is available in lengths of 100, 150, and 200 cm, so you can choose the length that suits your workstation.
The version with article number 66.1046-* is the one where the insulation is made of PVC.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1046-10023
- Product: test lead with integrated high-breaking capacity fuse
- For Ø 4 mm safety probes and test clips
- 1000 V, CAT IV
- Standard: IEC/EN 61010-031
- Fuse holder for 6.3 x 32 mm high-breaking capacity fuse
- Fuse not included
- Cable insulation: PVC
- Conductor cross-section: 1.0 mm²
- Cable lengths: 100, 150, and 200 cm
- Electrical contacts: CuZn with nickel plating
- Approvals: UL, CE
See datasheet from the manufacturer
