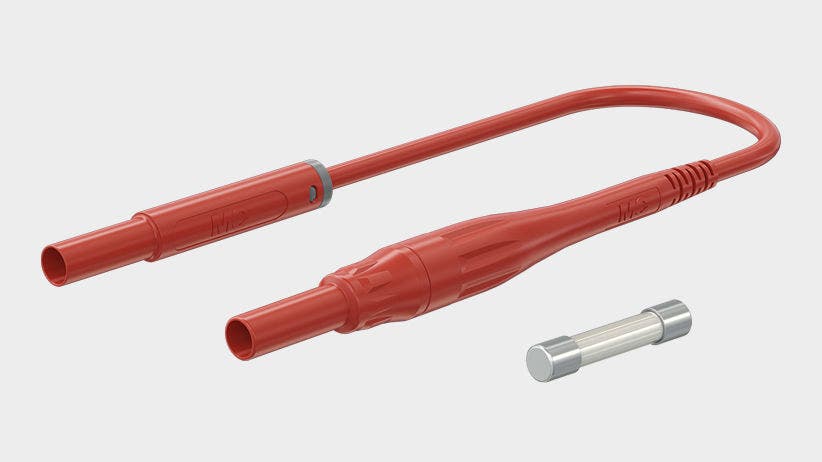

Test Leads SAK-4N-F10-ILF
These SAK-4N-F10-ILF test leads from STAUBLI are designed with integrated high-breaking capacity fuses and are intended for fuse-protected measurements. The design allows the use of Ø 4 mm standard safety probes and test clips with fuse protection. For further technical documentation, please refer to the manufacturer's datasheet below.
Function and Design
- Two-part screw connection, allowing the fuse to be replaced by unscrewing the connection.
- Built-in holder for high-breaking capacity fuses of size 6.3 x 32 mm (fuse not included).
- In-line Ø 4 mm MULTILAM connector with rigid insulation sleeve at both ends.
- High flexibility in the lead for improved handling.
Documentation: See manufacturer's datasheet
Typical Applications
SAK-4N-F10-ILF is used for fuse-protected measurements requiring the use of Ø 4 mm standard safety probes or test clips. This application directly follows from the product's description as test leads with integrated high-breaking capacity fuses and compatibility with Ø 4 mm probes.
Specifications
- Product Name: SAK-4N-F10-ILF
- Manufacturer: STAUBLI
- Manufacturer Part Number: 66.1046-10024
- Item number specified in datasheet: 66.1046-*
- Diameter of connector system: 4 mm
- Rated values: 1000 V, CAT IV (in accordance with IEC/EN 61010-031)
- Fuse acceptance: 6.3 x 32 mm (fuse not supplied)
- Lead lengths: 100 cm; 150 cm; 200 cm
- Lead insulation: PVC
- Lead cross-section: 1.0 mm²
- Surface treatment electrical contact: Ni
- Base material electrical contact: CuZn
- Test accessory according to: IEC EN 61010-031
- Approvals: UL, CE
