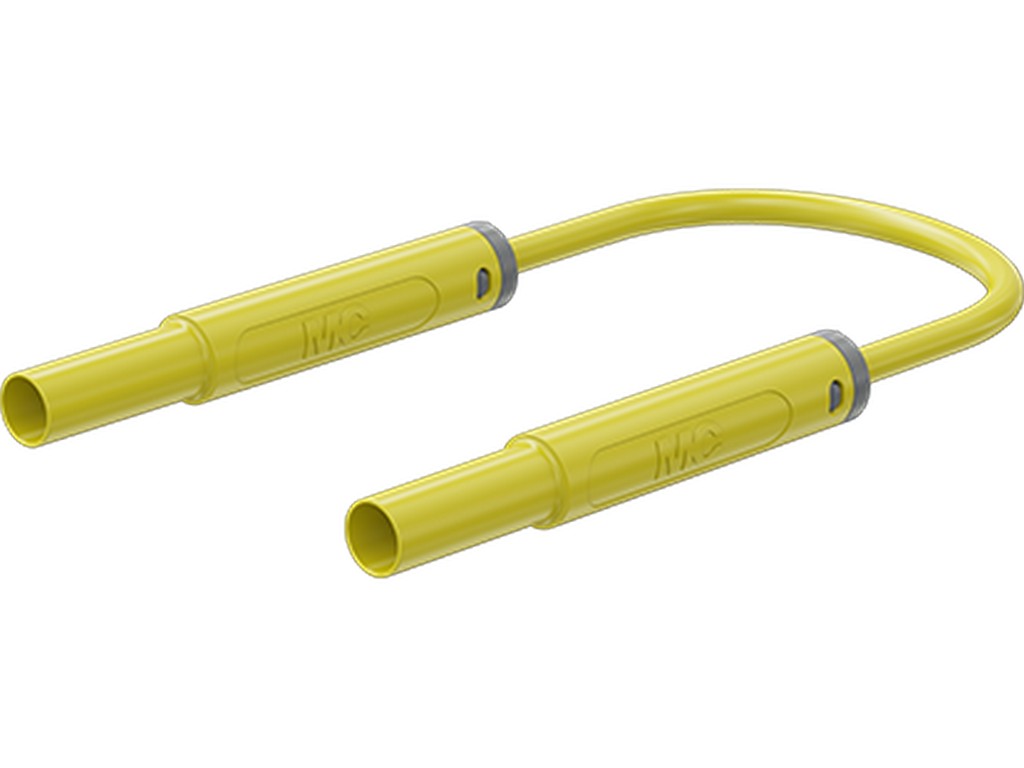

STAUBLI SAK-4N-F10
The STAUBLI SAK-4N-F10 is a highly flexible test cable for professional measurement and testing. It features a built-in Ø 4 mm MULTILAM plug with a rigid insulating collar at each end, ensuring secure and stable connections in test setups.
The cable is constructed with PVC insulation and a conductor cross-section of 1.0 mm². This makes it suitable for applications requiring a test lead that can withstand daily handling while providing a reliable electrical connection. The electrical contact is made of CuZn with a nickel surface, a common solution in equipment where contact surface and wear resistance are important.
The SAK-4N-F10 is rated for 1000 V, CAT IV, and 19 A. This means it is designed for demanding measurement situations requiring high standards for both voltage and safety. The cable series is available in lengths of 050, 100, 150, and 200 cm, making it adaptable to various workplaces and setups.
This is a test accessory compliant with IEC EN 61010-031, and the product is UL and CE approved. See manufacturer's datasheet
Typical applications
The cable is typically used in test and measurement setups where instruments need to be safely and quickly connected with 4 mm terminals.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1040-10024
- Product: SAK-4N-F10
- Ø 4 mm MULTILAM plug at both ends
- Rigid insulating collar at both ends
- Cable insulation: PVC
- Conductor cross-section: 1.0 mm²
- Rated values: 1000 V, CAT IV, 19 A
- Available lengths: 050, 100, 150 and 200 cm
- Contact material: CuZn
- Surface treatment of electrical contact: nickel
- Approvals: UL, CE
- Test accessory according to IEC EN 61010-031
