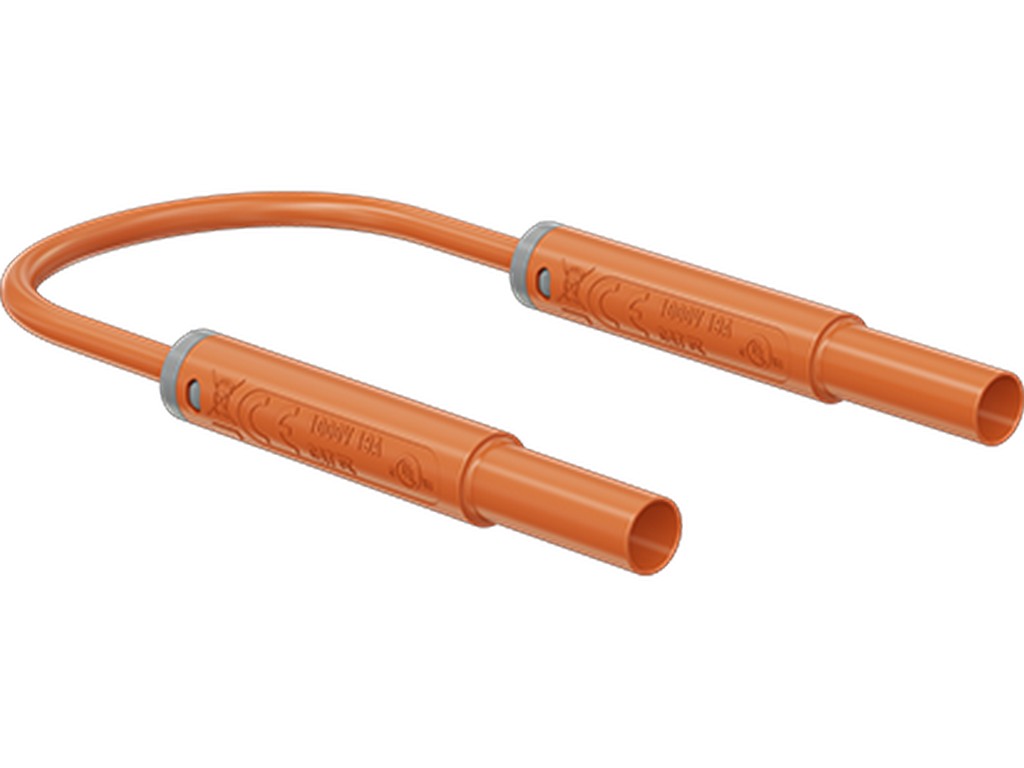

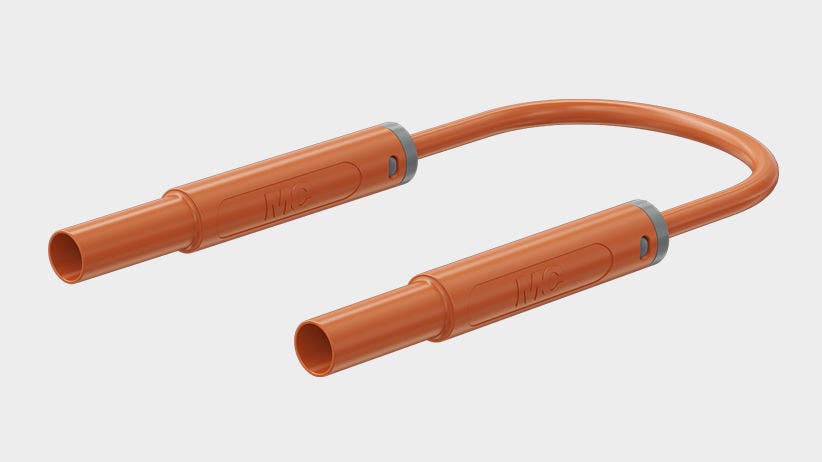

Test lead SAK-4N-F10 from Stäubli
This product belongs to the SAK-4N-F10 test lead family (part number 66.1040-*) from Stäubli and comes with inline Ø 4 mm MULTILAM plugs with rigid insulating sleeves on both ends. The product is identified as Stäubli 66.1040-10030 in the provided information.
Description
- Inline Ø 4 mm MULTILAM plug with rigid insulating sleeve on both ends.
- Electrical contact surface treated with nickel (Ni); the contact's base material is CuZn.
- Wire insulation in PVC with conductor cross-section 1.0 mm².
- Documented wire lengths: 50, 100, 150, and 200 cm.
- Rated values: 1000 V, CAT IV, and 19 A.
The official Stäubli datasheet for SAK-4N-F10 is dated 08.2024 and contains the technical data cited above. For full technical documentation: See manufacturer's datasheet.
Typical applications
The SAK-4N-F10 is used as a test lead/test accessory in measurement and test setups in accordance with its designation as a test accessory acc. to IEC EN 61010-031 indicated in the manufacturer's information. The description in the datasheet states the product's role as a test lead.
Specifications
- Product name: SAK-4N-F10 (part number 66.1040-*) / Stäubli Part No. 66.1040-10030
- Diameter of plug system: 4 mm
- Rated values: 1000 V, CAT IV, 19 A
- Surface treatment electrical contact: Ni (nickel)
- Base material electrical contact: CuZn
- Wire insulation: PVC
- Wire cross-section: 1.0 mm²
- Documented wire lengths: 50; 100; 150; 200 cm
- Test accessory according to: IEC EN 61010-031
- Datasheet date: 08.2024
- Approvals stated in datasheet: UL, CE
