SAK-4N-F25 test lead from STAUBLI

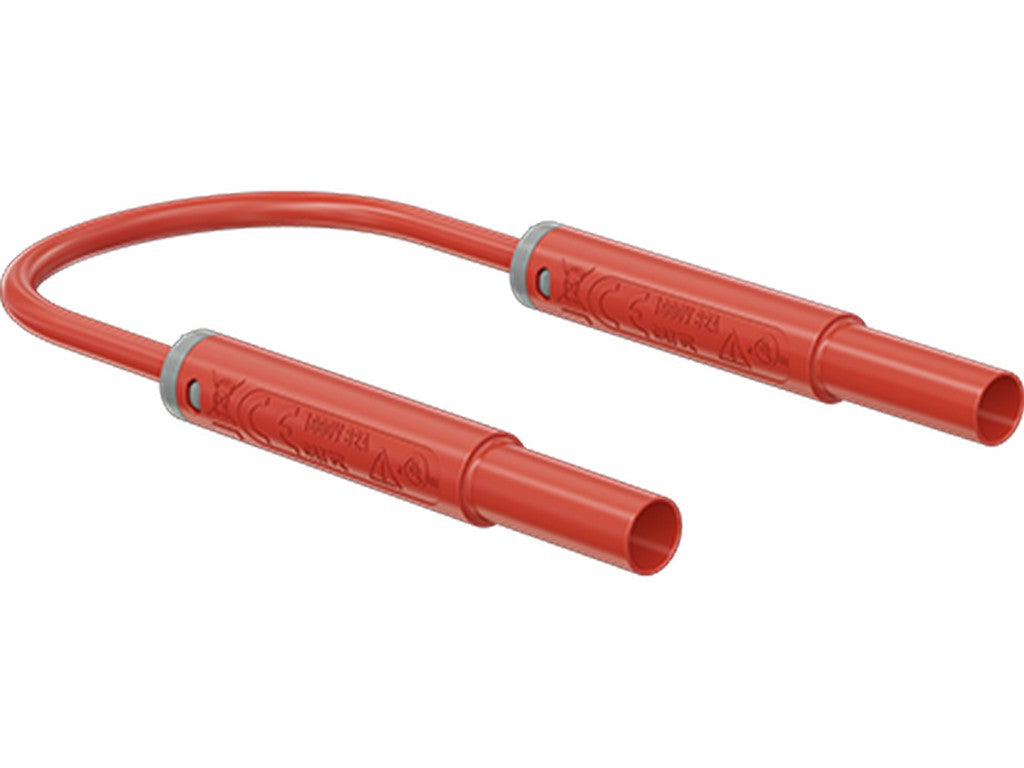

The SAK-4N-F25 (item number 66.1042-*) is a highly flexible test lead with axially mounted Ø 4 mm MULTILAM lamella connectors and rigid insulating sleeves at both ends. The product is specified by the manufacturer STAUBLI and is available in several standard lengths.
Construction and materials
- Connector system diameter: Ø 4 mm MULTILAM
- Contact material: base material CuZn with nickel-plated surface
- Cable insulation: PVC
- Cable cross-section: 2.5 mm²
Electrical data and approvals
- Rating data: 1000 V, CAT IV, 32 A
- Contact surface: Ni (nickel)
- Approvals mentioned in the manufacturer's datasheet: UL, CE
- Reference to standard/accessories: Measuring accessories according to IEC EN 61010-031
Typical applications
The SAK-4N-F25 is used as a test lead for connecting measuring or testing instruments to the object to be measured or tested, where a conductor with the specified electrical ratings (1000 V, CAT IV and 32 A) is required. The product name SAK-4N-F25 indicates the type and has been consistently used in the manufacturer's documentation.
Specifications
- Product name: SAK-4N-F25 (item number 66.1042-*)
- Connector diameter: 4 mm MULTILAM
- Voltage/rating: 1000 V, CAT IV
- Current: 32 A
- Contact material: CuZn, nickel-plated
- Cable insulation: PVC
- Cable cross-section: 2.5 mm²
- Available lead lengths: 50, 100, 150, 200 cm
- Approvals: UL, CE
Sources
See datasheet from the manufacturer
