STAUBLI SAK-4N-F25

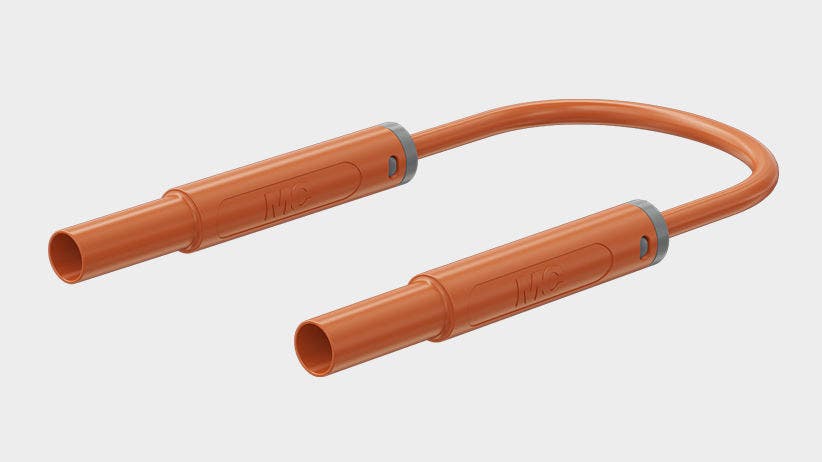

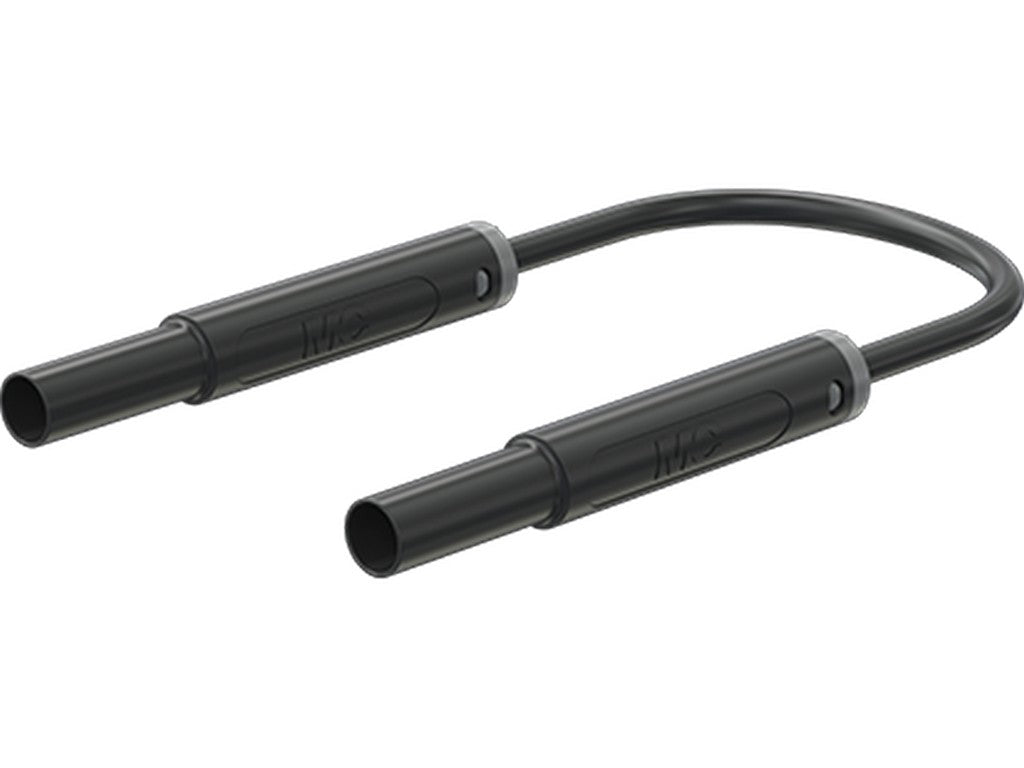

The STAUBLI SAK-4N-F25 is a highly flexible test lead with 4 mm MULTILAM plugs at both ends and a fixed insulating sleeve around the plugs. It is used as a connection lead for safe and stable electrical measurements or connections in test and measurement situations.
Its key characteristics are the combination of flexibility and robust construction. The lead has PVC insulation and a conductor cross-section of 2.5 mm², making it designed for professional use where both handling and electrical values are critical. The surface of the electrical contact is nickel, and the base material of the contact is CuZn.
The specified rated values are 1000 V, CAT IV, and 32 A. This means the lead is intended for applications involving high voltages and currents within specified safety limits. It is listed as a test accessory according to IEC EN 61010-031 and has UL and CE approvals.
Typical applications
The lead is typically suitable for measurement setups, test benches, and other professional environments where measurement equipment needs to be connected safely and quickly. It is available in lengths of 050, 100, 150, and 200 cm, allowing selection based on the required distance in the setup.
For the manufacturer's own information, you can find the datasheet here: See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1042-05021
- Product: SAK-4N-F25
- 4 mm MULTILAM plugs at both ends
- Rigid insulating sleeve at both ends
- Wire insulation: PVC
- Conductor cross-section: 2.5 mm²
- Rated values: 1000 V, CAT IV, 32 A
- Contact surface: nickel (Ni)
- Contact base material: CuZn
- Lead lengths: 050, 100, 150, and 200 cm
- Test accessory acc. to IEC EN 61010-031
- Approvals: UL, CE
Content generated by AI - we reserve the right for errors.
Contact HIN for further information about the product.
