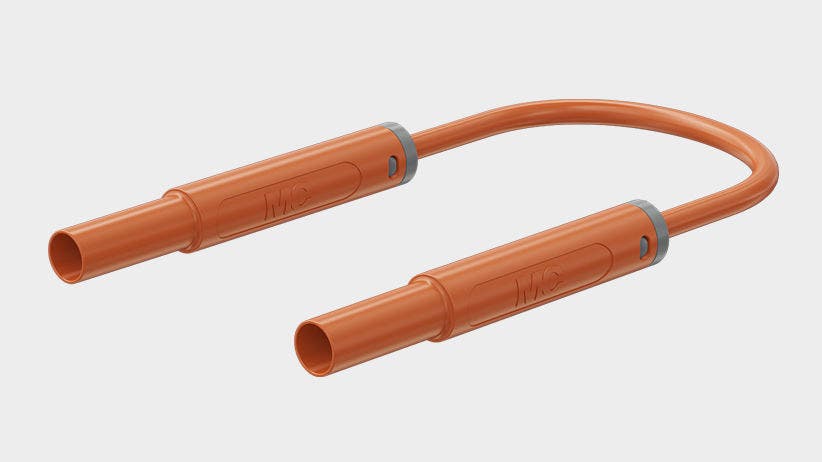

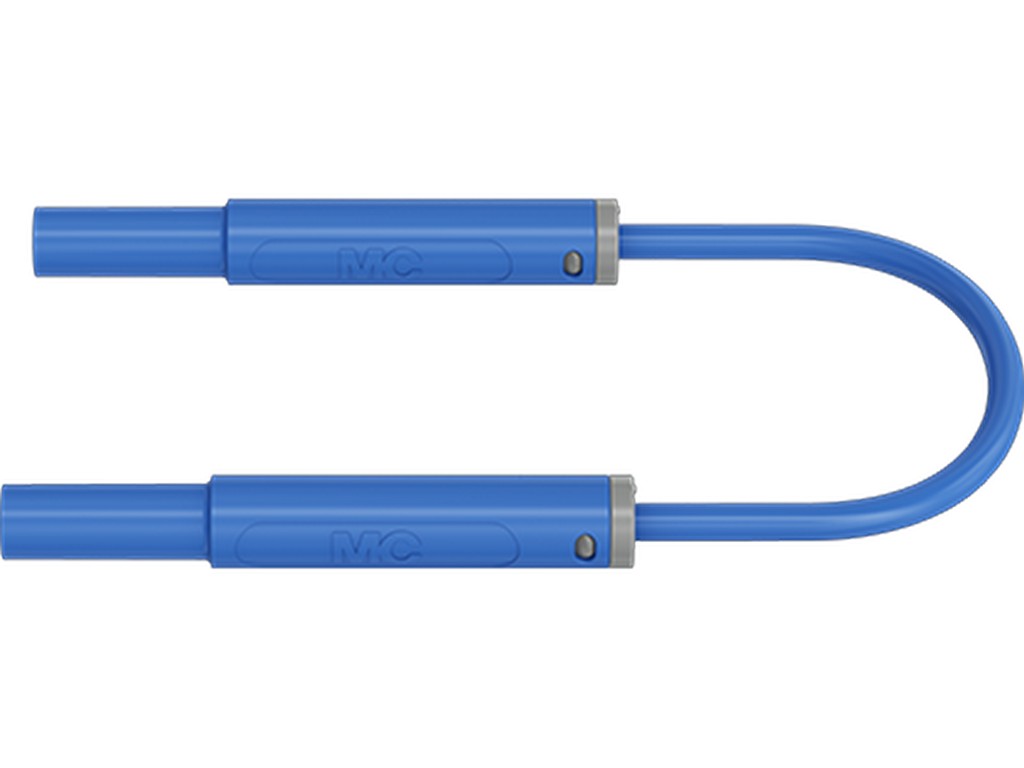

STAUBLI SAK-4N-S10 Test Leads
The STAUBLI SAK-4N-S10 is a highly flexible test lead with Ø 4 mm MULTILAM plugs at both ends and with fixed insulating sleeves. It is used as a professional connection cable when a safe and stable electrical connection needs to be established in test and measurement situations.
The lead is constructed with SIL insulation and a conductor cross-section of 1.0 mm². This provides a robust test lead designed for practical use in environments where both flexibility and electrical safety are required. The stated ratings are 1000 V, CAT IV, and 19 A.
The contact material is CuZn with a nickel finish, which helps explain why the plug part is designed for repeated use in technical test setups. The series is available in lengths of 50, 100, 150, and 200 cm, so you can choose a length that suits the working distance on the bench or in the system.
Official approvals such as UL and CE are included, and the product is specified as test accessory in accordance with IEC EN 61010-031. It is, therefore, a solution designed for professional test equipment where documented safety requirements are paramount.
Typical Applications
The test lead is typically used in test and measurement setups where a flexible 4 mm connection is needed between instruments, test setups, or connection points.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1041-10023
- Product Series: SAK-4N-S10
- Plug System: Ø 4 mm MULTILAM plug
- Insulating Sleeve: rigid insulating sleeve at both ends
- Cable Construction: SIL
- Conductor Cross-section: 1.0 mm²
- Rated Voltage: 1000 V
- Category: CAT IV
- Rated Current: 19 A
- Contact Material: CuZn
- Contact Surface: nickel
- Cable Lengths: 50 cm, 100 cm, 150 cm, 200 cm
- Approvals: UL, CE
- Datasheet: See datasheet from the manufacturer
