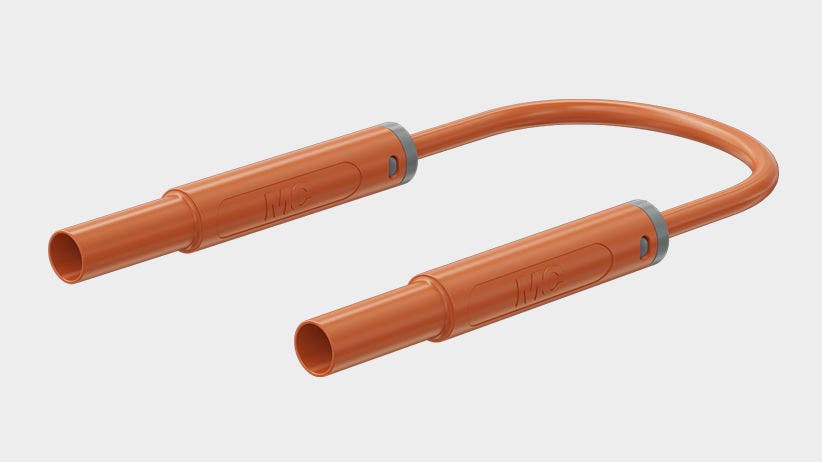

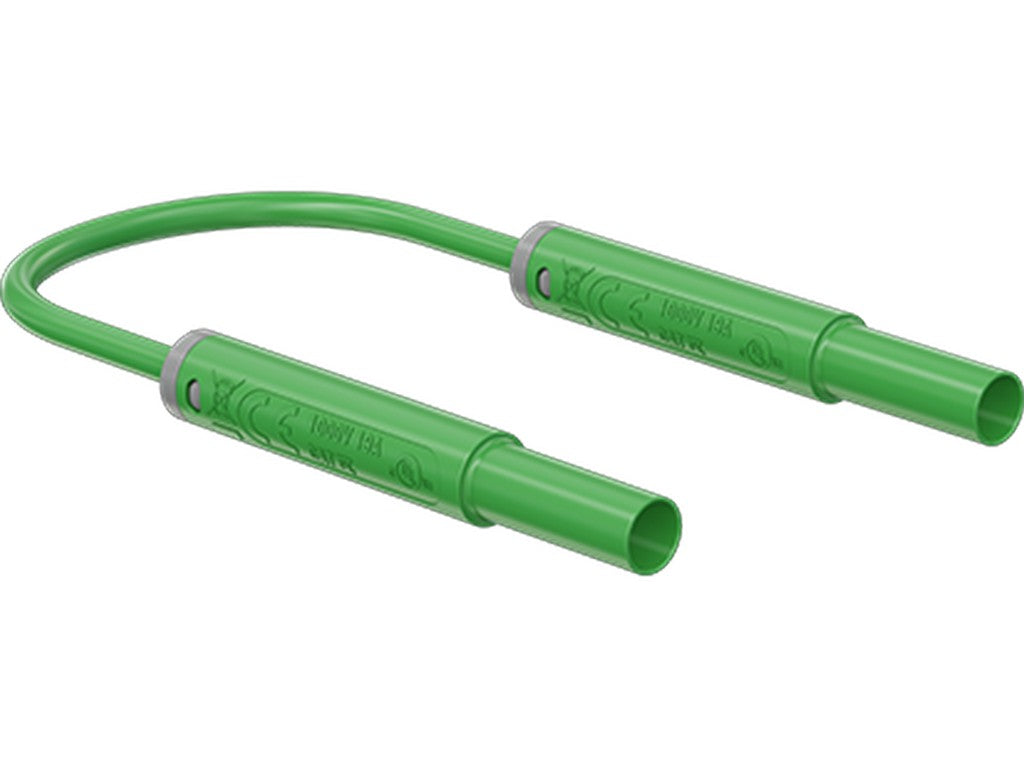

STAUBLI SAK-4N-S10 test lead
The STAUBLI SAK-4N-S10 is a test lead with Ø 4 mm MULTILAM plugs at both ends and rigid insulation sleeves. It is used as part of test and measurement setups where a secure and stable connection between equipment and measurement point is desired.
The lead is rated for 1000 V, CAT IV, and 19 A, making it suitable for demanding measurement tasks requiring high standards for both insulation and contact. It is constructed with SIL silicone for cable insulation and has a conductor cross-section of 1.0 mm², which contributes to its flexibility in use. The contact material is CuZn with a nickel finish.
This is a test accessory according to IEC EN 61010-031, and the product has UL and CE approvals. This makes it easier to choose the right lead when it is to be included in professional measuring equipment, laboratories, or electrical engineering tasks where standards and safety are important.
The cable length is available in 50, 100, 150, and 200 cm, so you can choose the length that suits the task and the setup of the workplace.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1041-05025
- Product type: test lead
- Connector type: Ø 4 mm MULTILAM plugs at both ends
- Insulation: rigid insulation sleeves at both ends
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 19 A
- Cable insulation: SIL (silicone)
- Conductor cross-section: 1.0 mm²
- Contact material: CuZn
- Surface treatment on electrical contact: nickel
- Standard lengths: 50, 100, 150, and 200 cm
- Standard: IEC EN 61010-031
- Approvals: UL, CE
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
