STAUBLI 66.1041-05030

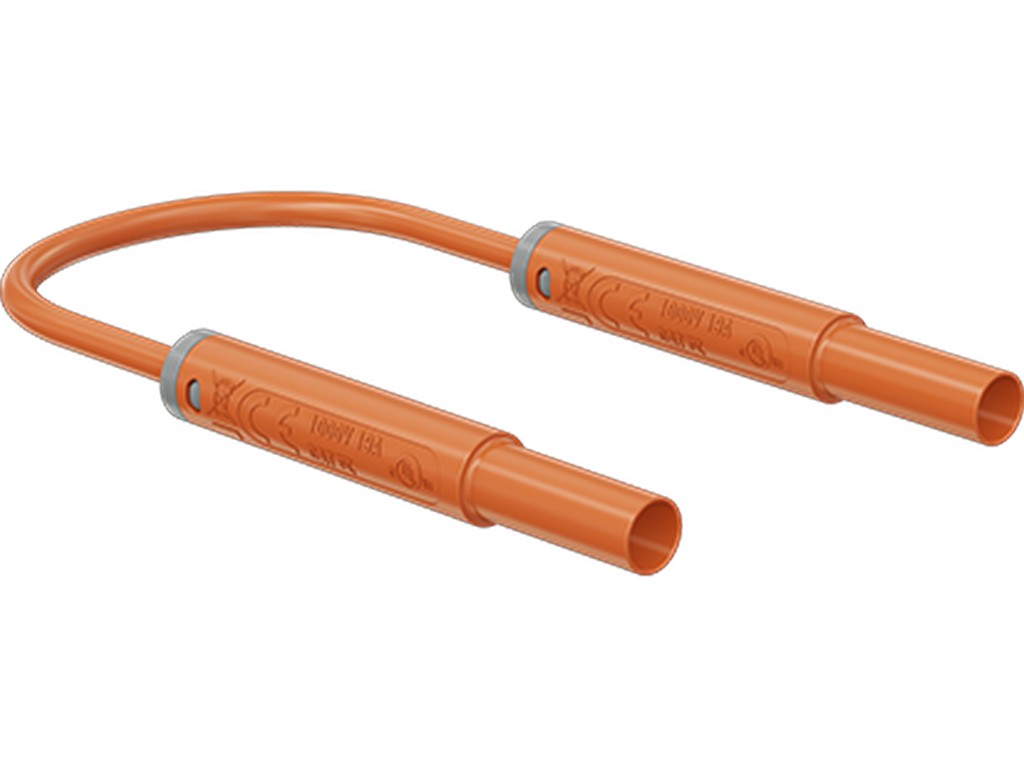

This is a flexible test lead for professional measurement tasks where a secure and solid connection between test equipment and a system is required. It belongs to the SAK-4N-S10 series and has Ø 4 mm MULTILAM plugs at both ends with fixed insulation sleeves. This makes it suitable for situations where the connection needs to be frequently handled while remaining stable during measurement.
The lead is constructed with silicone insulation and a conductor cross-section of 1.0 mm². This results in a lead that is very flexible in use and dimensioned for the specified loads. The verified rated values are 1000 V, CAT IV, and 19 A, indicating it is designed for demanding test environments where safety and correct construction are paramount.
The contact surface is nickel-plated and built on CuZn. This detail is particularly relevant in professional test equipment because it involves a contact that must be reliable over time. This variant is specified with a length of 050, and the series is also available in 100, 150, and 200 cm.
Typical applications
- Electrical measurements and testing tasks with 4 mm connection
- Use in professional test and measurement environments
- Connection between measuring instrument and test setup
It has UL and CE approvals, and the product is listed as test accessory according to IEC EN 61010-031.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1041-05030
- Series: SAK-4N-S10
- Ø 4 mm MULTILAM plugs with fixed insulation sleeves at both ends
- Cable insulation: silicone (SIL)
- Conductor cross-section: 1.0 mm²
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 19 A
- Contact material: CuZn
- Contact surface: nickel (Ni)
- Length: 050 cm
- Approvals: UL, CE
- Datasheet: See datasheet from the manufacturer
