STAUBLI SAK-4N-S10

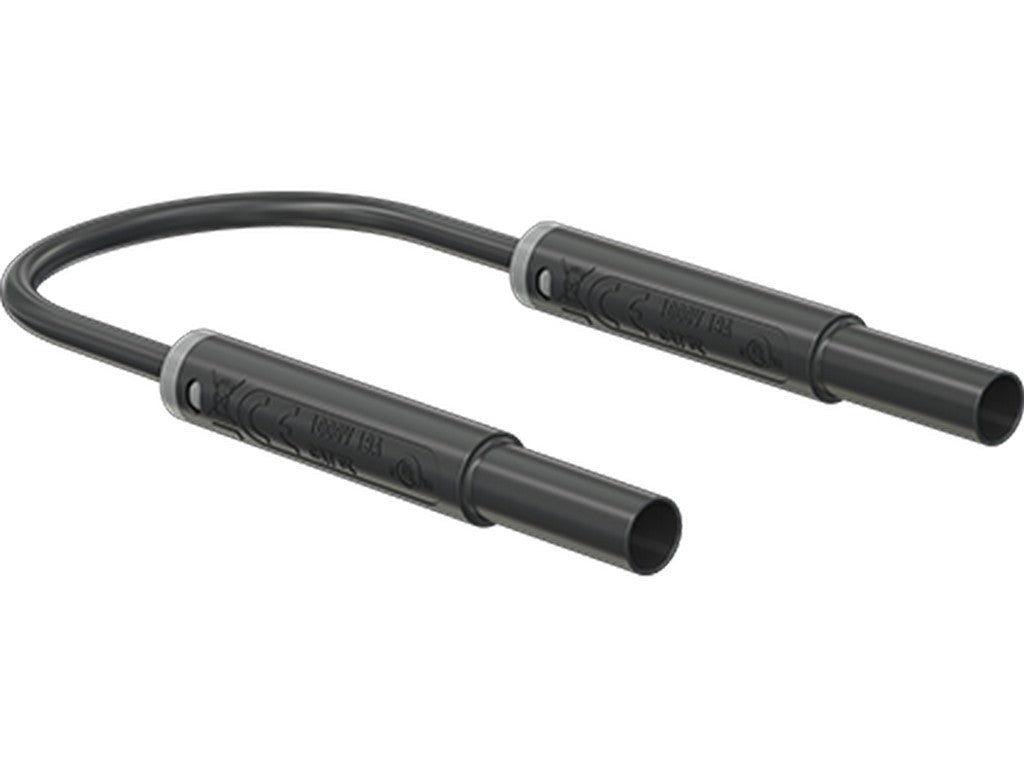

The STAUBLI SAK-4N-S10 is a highly flexible test lead for measurement and testing tasks that require secure connections with 4 mm MULTILAM plugs at both ends. It is typically used as part of setups for connecting measuring equipment, test points, or other components in a professional environment.
The lead is constructed with a fixed insulating sleeve at both connector ends, making the connection more stable during use. This is a practical detail when the lead is frequently plugged in and unplugged, or when working close to equipment with requirements for proper touch protection. The silicone insulation makes the lead flexible, which is an advantage when it needs to be laid out on a test bench or used in a setup where it is moved often.
With a rated voltage of 1000 V CAT IV and a rated current of 19 A, it is designed for demanding testing work. The conductor cross-section is 1.0 mm², and the contact part is made of CuZn with a nickel surface. The series is also documented according to IEC EN 61010-031 and has UL and CE approvals.
Typical applications
- Test and measurement setups in electrical engineering
- Connections in laboratories and service environments
- Use with equipment with 4 mm connections
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1041-05021
- Series: SAK-4N-S10
- 4 mm MULTILAM plugs at both ends
- Rigid insulating sleeve at both ends
- Rated voltage: 1000 V CAT IV
- Rated current: 19 A
- Cable insulation: silicone (SIL)
- Conductor cross-section: 1.0 mm²
- Contact part: CuZn with nickel surface
- Available lengths: 50, 100, 150 and 200 cm
- Approvals: UL, CE
- Reference: IEC EN 61010-031
- See datasheet from the manufacturer
