Product Overview

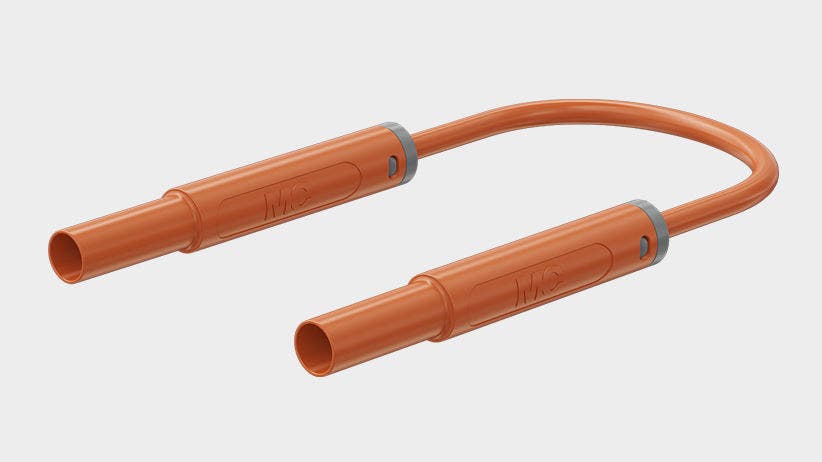

This test lead from STAUBLI, SAK-4N-S25 (item number 66.1043-*), is a highly flexible test lead with in-line Ø 4 mm MULTILAM plugs and fixed insulating sleeves on both ends. The product is specified with nominal values of 1000 V, CAT IV, and 32 A. The lead insulation is silicone (SIL) and the conductor cross-section is 2.5 mm².Technical Characteristics
- Plug system: Ø 4 mm MULTILAM
- Nominal values: 1000 V, CAT IV, 32 A
- Lead insulation: SIL (silicone)
- Conductor cross-section: 2.5 mm²
- Surface treatment of electrical contact: Ni (nickel)
- Contact base material: PA
- Available lead lengths: 50 cm, 100 cm, 150 cm, 200 cm
- Fixed insulating sleeves on both ends
- Tested according to IEC EN 61010-031
- Approvals: UL, CE
Typical Applications
SAK-4N-S25 is used as a test lead for connection between test or measuring instruments and test points where an in-line Ø 4 mm MULTILAM connection is required. The description and manufacturer data indicate the product's purpose as a test lead.Documentation
For technical details and complete product information, please refer to the manufacturer's datasheet. See datasheet from the manufacturerSpecifications
- Product name: SAK-4N-S25 (item no. 66.1043-*)
- Plug diameter: 4 mm
- Ratings: 1000 V, CAT IV, 32 A
- Lead insulation: SIL
- Conductor cross-section: 2.5 mm²
- Lead lengths: 50; 100; 150; 200 cm
- Contact surface: Nickel (Ni)
- Contact base material: PA
- Standard/test: IEC EN 61010-031
- Approvals: UL, CE
Sources
- Manufacturer datasheet: See datasheet from the manufacturer
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
