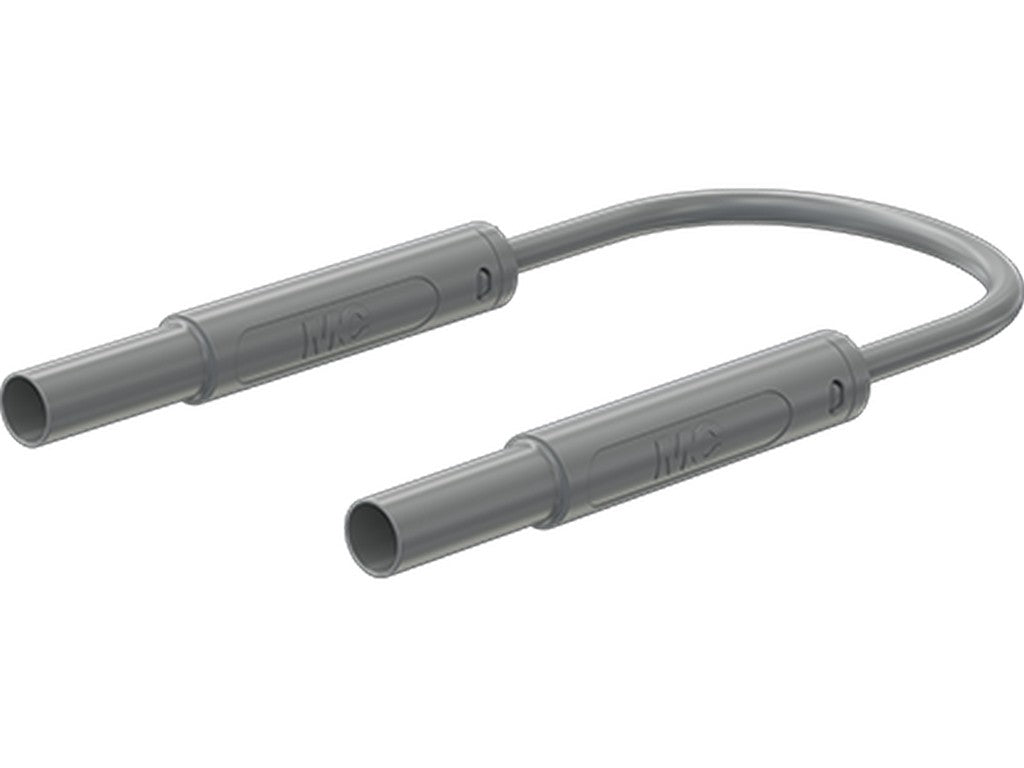

STAUBLI SAK-4N-S25
The STAUBLI SAK-4N-S25 is a highly flexible test lead with 4 mm MULTILAM plugs in line and rigid insulating sleeves at both ends. It is designed for measurement and testing tasks where a secure and agile connection between test equipment and the measuring point is required.
The lead features silicone insulation, making it suitable for setups where the cable needs to be bent and handled repeatedly. With a conductor cross-section of 2.5 mm² and a rated voltage of 1000 V in CAT IV, it is a professional-grade test accessory where safety and load requirements are clear. It is also rated for 32 A.
Therefore, it is not just an ordinary patch cable, but a test lead for electrical engineering and measurement tasks where the 4 mm system is widely used. The rigid insulating sleeves help protect the connection when the cable is inserted and removed.
Cable lengths of 50, 100, 150, and 200 cm are available. The contact surface is nickel-plated, and the basic contact material is PA. The product is listed as a test accessory according to IEC EN 61010-031 and has UL and CE approvals.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1043-05028
- Type: SAK-4N-S25 test lead
- 4 mm MULTILAM plugs in line
- Rigid insulating sleeves at both ends
- Cable insulation: silicone (SIL)
- Conductor cross-section: 2.5 mm²
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 32 A
- Contact surface: nickel (Ni)
- Basic contact material: PA
- Cable lengths: 50, 100, 150 and 200 cm
- Test accessory according to IEC EN 61010-031
- Approvals: UL, CE
- See datasheet from the manufacturer
