STAUBLI 66.1043-10024

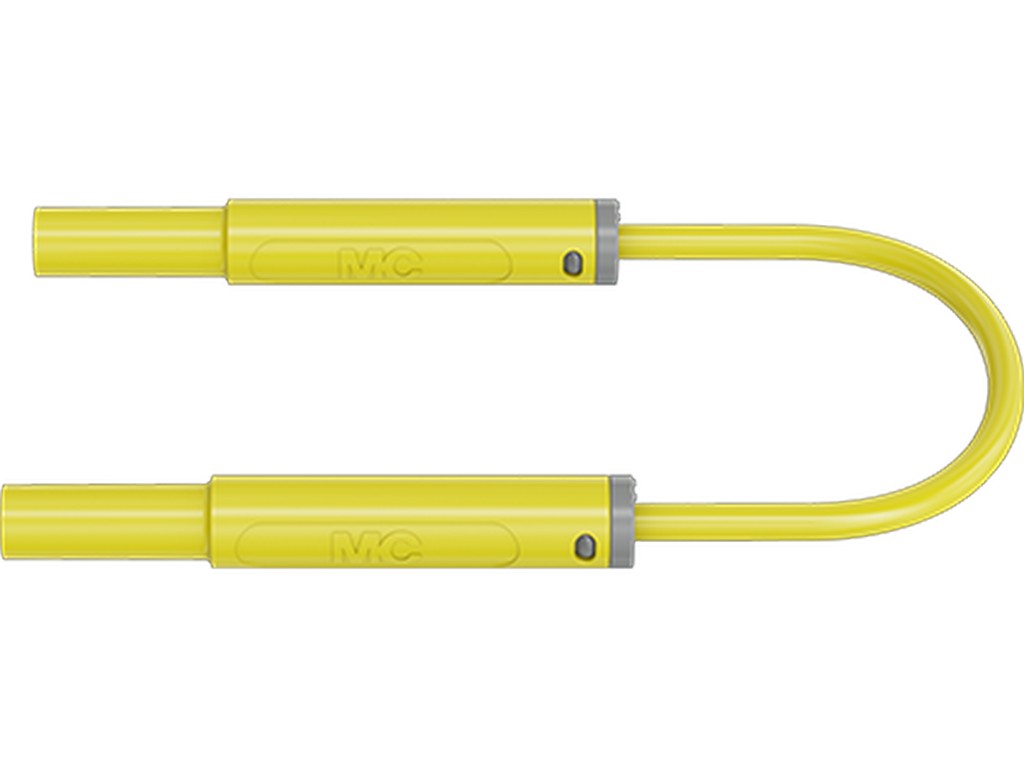

The STAUBLI 66.1043-10024 is a very flexible test lead with 4 mm MULTILAM plugs in series connection and rigid insulation sleeves at both ends. It is used as part of test and measurement setups where a safe and manageable connection between measuring equipment and the test point is required.
The cable is constructed with silicone insulation and a conductor cross-section of 2.5 mm². This results in a cable designed for professional use, where both flexibility and electrical data play an important role. It is rated for 1000 V, CAT IV, and 32 A, making it suitable for tasks with clear requirements for voltage, load, and safety.
The rigid insulation sleeves at the plugs make the connection more robust and help protect the area around the connection. The contact part itself is made with PA as the base material and nickel surface treatment. The cable is covered by IEC EN 61010-031 and has UL and CE approvals.
When choosing the length, options are available for 50, 100, 150, and 200 cm. For a permanently established test setup, the cable length often determines whether the connection will be practical in daily use.
Typical Applications
- Test and measurement setups in electrical engineering
- Connection between measuring equipment and test points
- Professional work situations requiring a 4 mm connection
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1043-10024
- Product Series: SAK-4N-S25
- Plug system: 4 mm
- Design: in-line Ø 4 mm MULTILAM plug with rigid insulation sleeves at both ends
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 32 A
- Cable insulation: SIL
- Conductor cross-section: 2.5 mm²
- Material, electrical contact base: PA
- Surface treatment, electrical contact: Ni
- Available lengths: 50, 100, 150, and 200 cm
- Compliance: IEC EN 61010-031
- Approvals: UL, CE
