Test Accessory: SAK-4N-S25 from STAUBLI

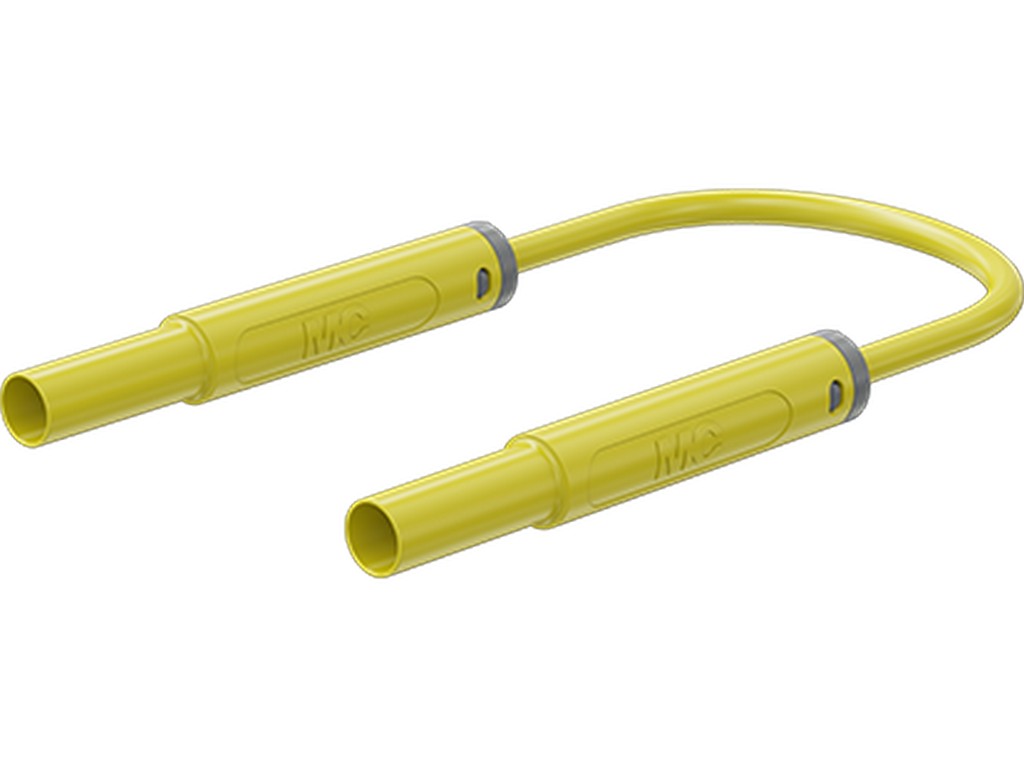

SAK-4N-S25 (item number 66.1043-*) is a flexible test lead from STAUBLI intended as a test accessory. The product comes with inline Ø 4 mm MULTILAM plugs with rigid insulating sleeves on both ends and a conductor cross-section of 2.5 mm². The cable insulation is made of silicone material (SIL).
Function and Construction
The SAK-4N-S25 has a plug diameter of 4 mm and an electrical contact surface with nickel plating. The base material for the electrical contact is PA. Rated values are specified as 1000 V, CAT IV, and 32 A, and the product is classified as a test accessory according to IEC EN 61010-031.
Documentation
View datasheet from the manufacturer
Typical Applications
- Used as a test lead/test accessory for electrical connections between measuring or testing equipment and a test point, as indicated by the product designation "test accessory".
Specifications
- Product Name: SAK-4N-S25 (item number 66.1043-*)
- Manufacturer: STAUBLI
- Plug Diameter: 4 mm
- Conductor Cross-section: 2.5 mm²
- Rated Values: 1000 V, CAT IV, 32 A
- Cable Insulation: Silicone (SIL)
- Available Lengths: 50 cm; 100 cm; 150 cm; 200 cm
- Surface Treatment Electrical Contact: Nickel (Ni)
- Base Material Electrical Contact: PA
- Test Accessory according to: IEC EN 61010-031
- Approvals: UL, CE
Source: Stäubli product documentation (datasheet for item 66.1043-*, see link above).
Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
