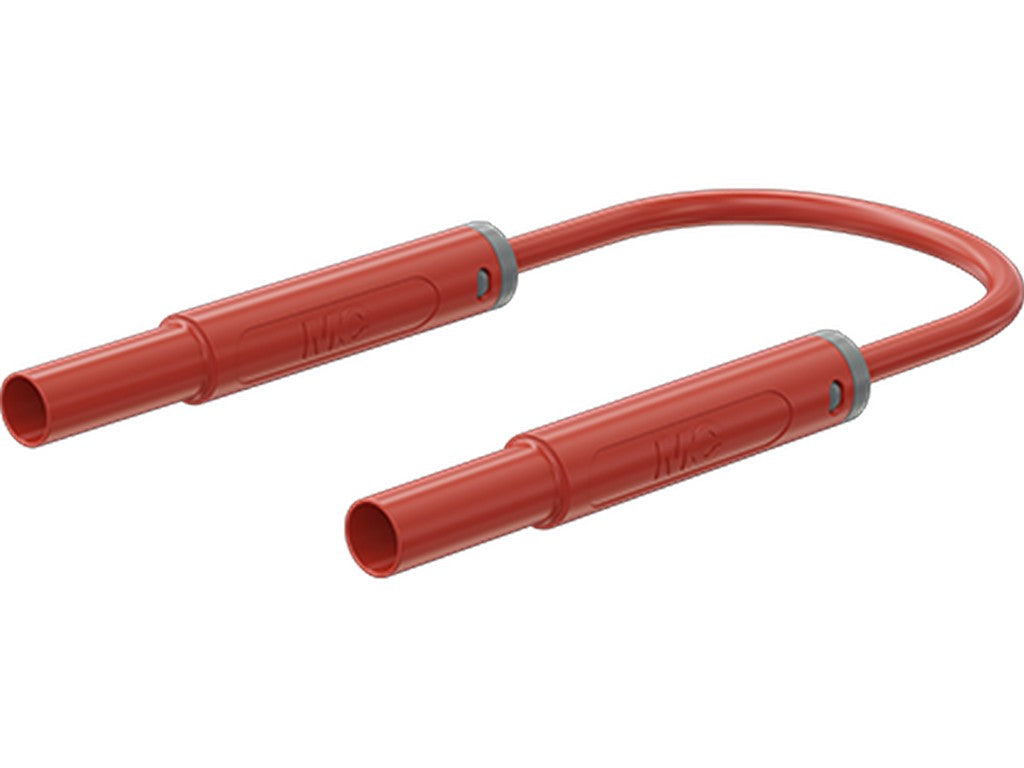

STAUBLI 66.1043-20022
The STAUBLI 66.1043-20022 is a highly flexible test lead for measurement and testing applications where a secure connection between equipment and measurement point is required. Each end features an integrated Ø 4 mm MULTILAM plug with a rigid insulating sleeve, making the lead ready for professional use in test setups.
The lead is designed with a 2.5 mm² conductor cross-section and silicone insulation, making it suitable for use with equipment that requires a robust and flexible test lead. It is rated for 1000 V in CAT IV and 32 A, and it is listed as test accessory according to IEC EN 61010-031. It also carries UL and CE approvals.
For many technicians, it is precisely the combination of flexibility, safety, and standardized 4 mm connections that makes it practical for everyday use. It fits perfectly when connecting test instruments and measurement leads in a recognizable and easy-to-use manner.
Available lengths are 50, 100, 150, and 200 cm.
Typical Applications
The lead is typically used as a test accessory in environments where electrical measurement and testing are performed, and where a flexible lead with 4 mm connections at both ends is desired.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.1043-20022
- Product type: Test lead / test accessory
- Plug system: Ø 4 mm MULTILAM plug
- Insulating sleeve: Rigid insulating sleeve on both ends
- Conductor cross-section: 2.5 mm²
- Insulation: Silicone (SIL)
- Rated voltage: 1000 V
- Category: CAT IV
- Rated current: 32 A
- Contact surface treatment: Nickel (Ni)
- Contact base material: Polyamide (PA)
- Approvals: UL, CE
- Standard: IEC EN 61010-031
- Available lengths in datasheet: 50, 100, 150, and 200 cm
- Datasheet: See datasheet from manufacturer
