STAUBLI 66.2014-10023

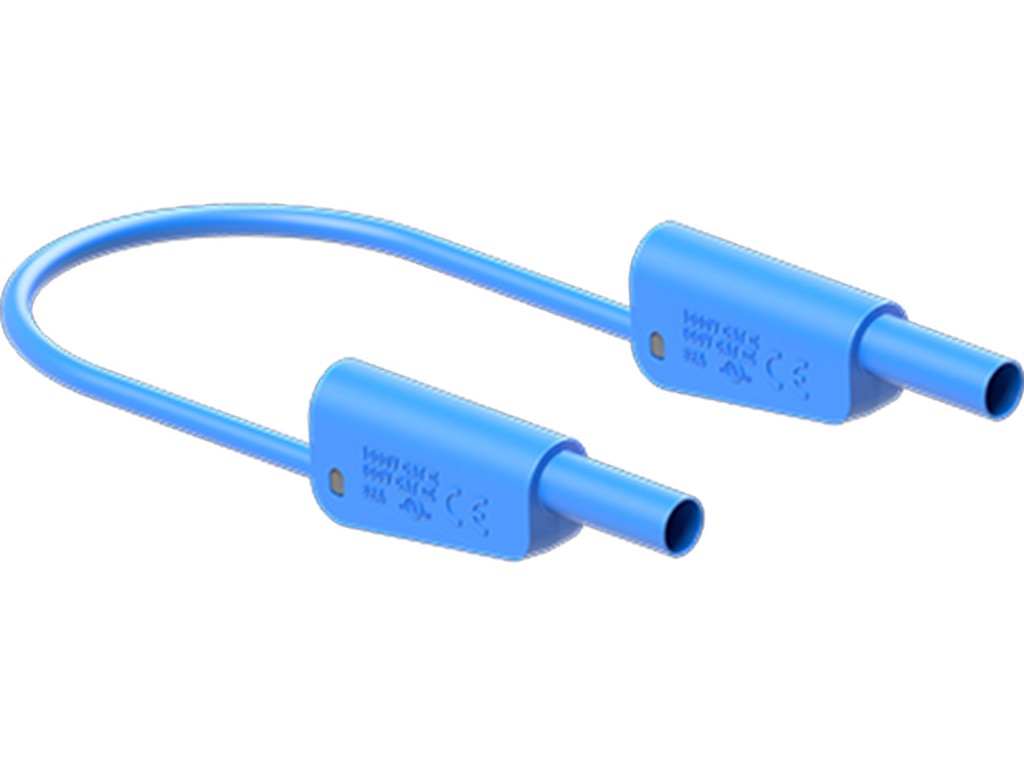

The STAUBLI 66.2014-10023 is a highly flexible test lead with Ø 4 mm plugs at both ends. One detail particularly worth noting is the stackable MULTILAM construction, which makes the lead suitable for setups where multiple connections are required at the same point. Both ends have a fixed insulating sleeve, making the connection more manageable in practical measurement work.
The lead is designed for professional test and measurement equipment, where reliability, flexibility, and safe handling are often crucial. It has a cross-section of 2.5 mm² and PVC insulation, and the contact surfaces are nickel-plated with CuZn as the base material. This provides a solution suitable for general laboratory work, service, and control measurements where the equipment needs to be used repeatedly.
The voltage and current data clearly show that it belongs in serious measurement situations: 1000 V, CAT II, 32 A, and 600 V, CAT III, 32 A. The product is also specified according to IEC EN 61010-031 and has UL and CE approvals.
Typical applications
- testing and measurement in electrical engineering setups
- connections on measuring equipment with 4 mm plug system
- work where stackable plugs are an advantage
Several lead lengths are available in the series: 025, 050, 075, 100, 150, and 200 cm. Standard colors are also listed in the manufacturer's data.
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2014-10023
- Product type: flexible test lead
- Plug system: Ø 4 mm
- Plug type: stackable MULTILAM plugs
- Insulation: PVC
- Lead cross-section: 2.5 mm²
- Available lengths: 025, 050, 075, 100, 150, and 200 cm
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Contact material: CuZn
- Contact plating: nickel (Ni)
- Standard reference: IEC EN 61010-031
- Approvals: UL, CE
- See datasheet from the manufacturer
